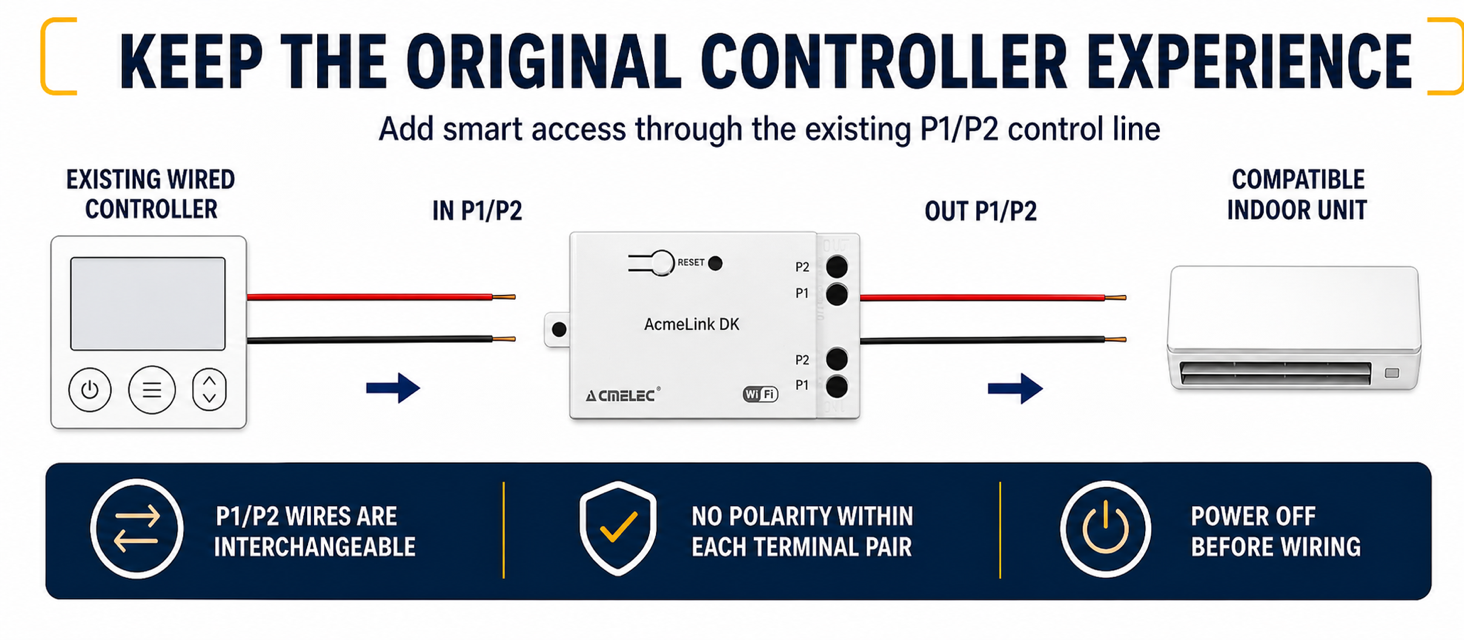

Keep the wired controller
Add smart functionality while leaving the compatible original Daikin wired controller connected.
AcmeLink VRF Gateway
AcmeLink DK Daikin P1/P2 WiFi Gateway

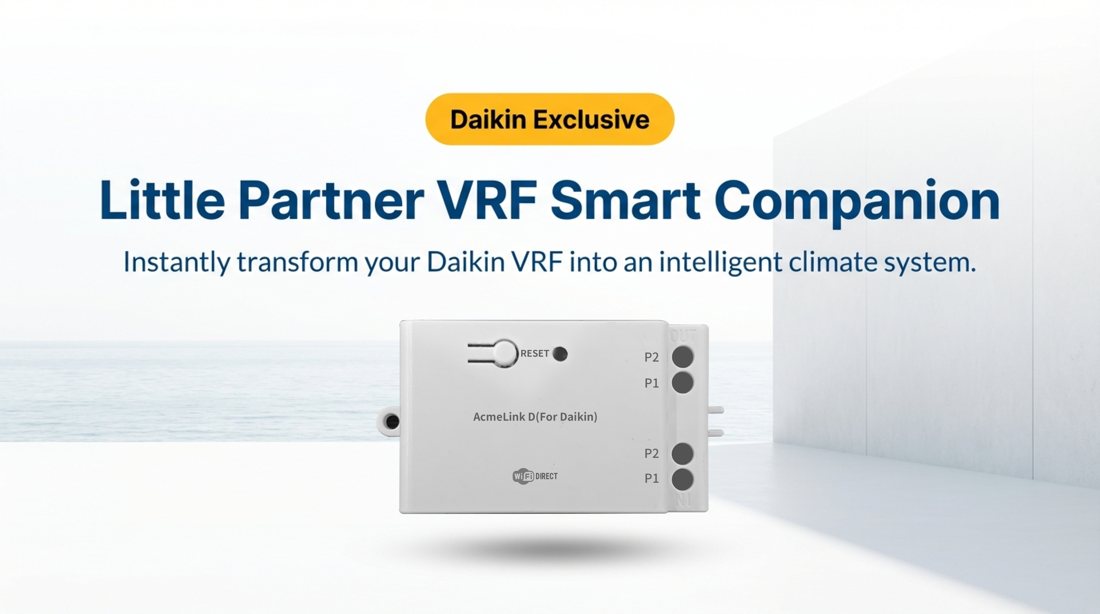

Smart control module for compatible Daikin VRV/VRF indoor units with a P1/P2 wired-controller interface. Its non-polarized two-wire connection can be installed with the original wired controller and adds Tuya Smart Life app control.
- Model
- AcmeLink DK
- Connection
- Non-polarized P1/P2
- App
- Tuya Smart / Smart Life
- Compatible brand
- Daikin
- Product family
- AcmeLink VRF Gateway
Selection and installation reference
AcmeLink DK: package and installation preparation

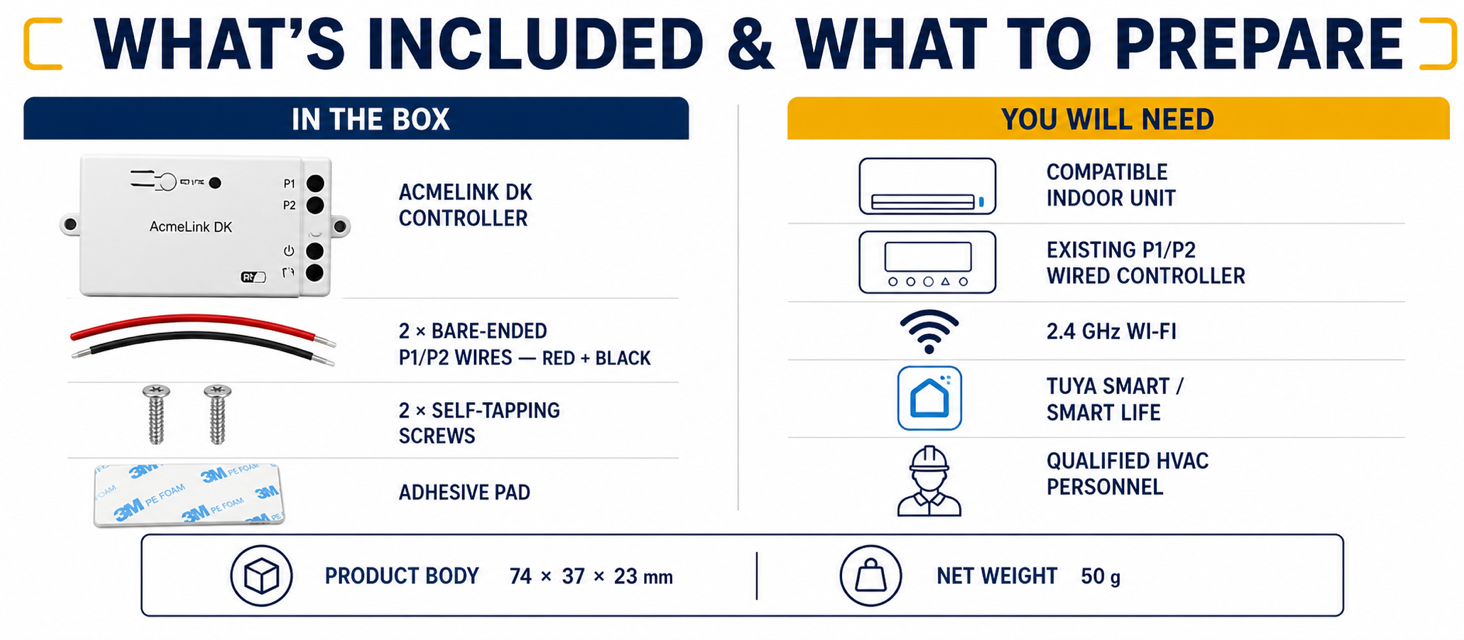

The illustrated standard package contains an AcmeLink DK controller, two bare-ended P1/P2 wires (red and black), two self-tapping screws and an adhesive pad. The product body is 74 × 37 × 23 mm and its net weight is 50 g.
What you need before installation
- A confirmed compatible Daikin indoor unit and its existing P1/P2 wired controller.
- The complete indoor-unit model, controller model and a clear photograph identifying the P1/P2 terminals.
- A 2.4 GHz WiFi network, Tuya Smart / Smart Life and qualified HVAC personnel.
Connection and commissioning

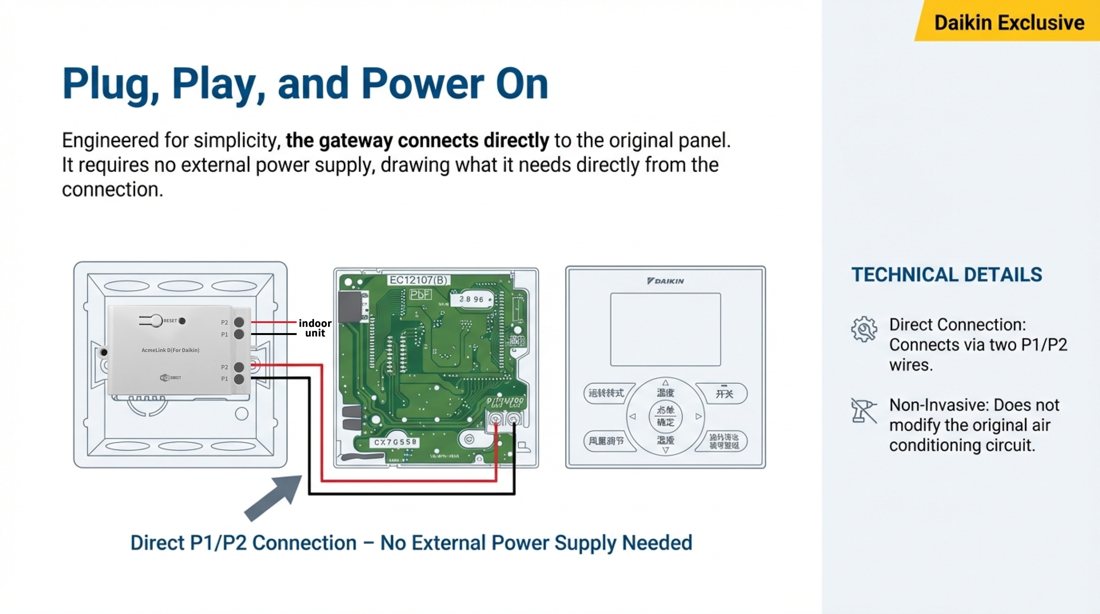

AcmeLink DK uses the compatible Daikin P1/P2 controller route, not a Mitsubishi Electric CN105 connection. The two P1/P2 conductors are non-polarized; their red and black colors do not establish positive and negative terminals. The compatible original wired controller can remain connected in parallel.
Isolate HVAC power before wiring. Follow the confirmed P1/P2 connection diagram, then restore power, pair the WiFi module and test power, mode, temperature, fan speed and original-controller operation as supported by the indoor unit. Do not use the ME configuration list as a DK specification.
References: supplied package and preparation panel · DK manual and connection information.
Complete product presentation
AcmeLink DK — smart control through the P1/P2 route
Review the product positioning, working principle, compatibility confirmation, app functions, original-controller retention, package details and two-year support in sequence.
AcmeLink gateway detail

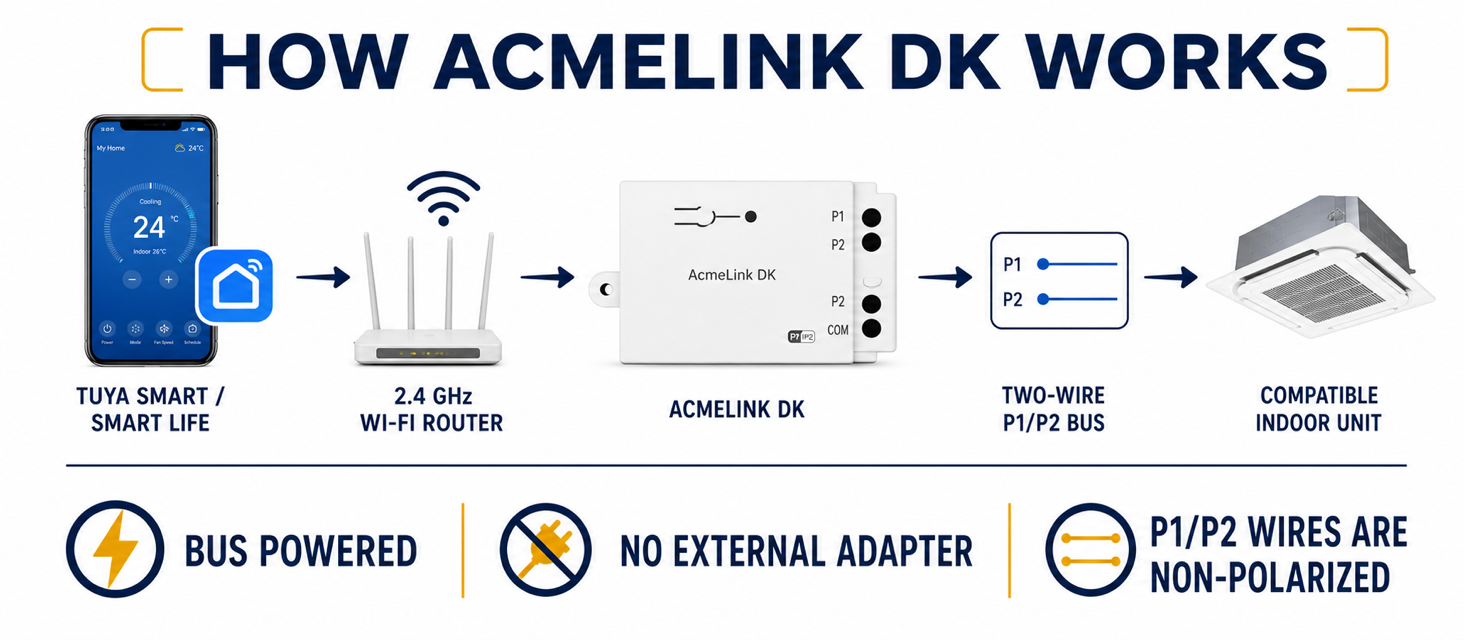

AcmeLink DK Daikin gateway working logic
AcmeLink DK is used as an add-on smart gateway for compatible Daikin air conditioning systems. It is especially useful when the project needs mobile app control but still wants to keep the original wired controller route.
Technical and installation points
| Target brand | Daikin |
|---|---|
| Compatible route | Selected Daikin VRV / VRF indoor units with a P1/P2 wired-controller interface |
| Wiring | Indoor-unit P1/P2 to AcmeLink DK P1/P2 |
| Polarity | Non-polarized; the two P1/P2 wires are interchangeable |
| Original controller | Can remain connected in parallel |
| App | Tuya Smart / Smart Life |
| Product size | 74 x 37 x 23 mm |
| Net weight | 50 g |
| Installation focus | Confirm the indoor-unit model and identify the P1/P2 controller terminals before ordering |
How buyers should understand this gateway
Non-polarized wiring
Connect the two P1/P2 conductors without polarity; P1 and P2 are interchangeable.
Four-step setup
Power off, connect P1/P2, pair the 2.4 GHz WiFi module in the app, then test every supported function.

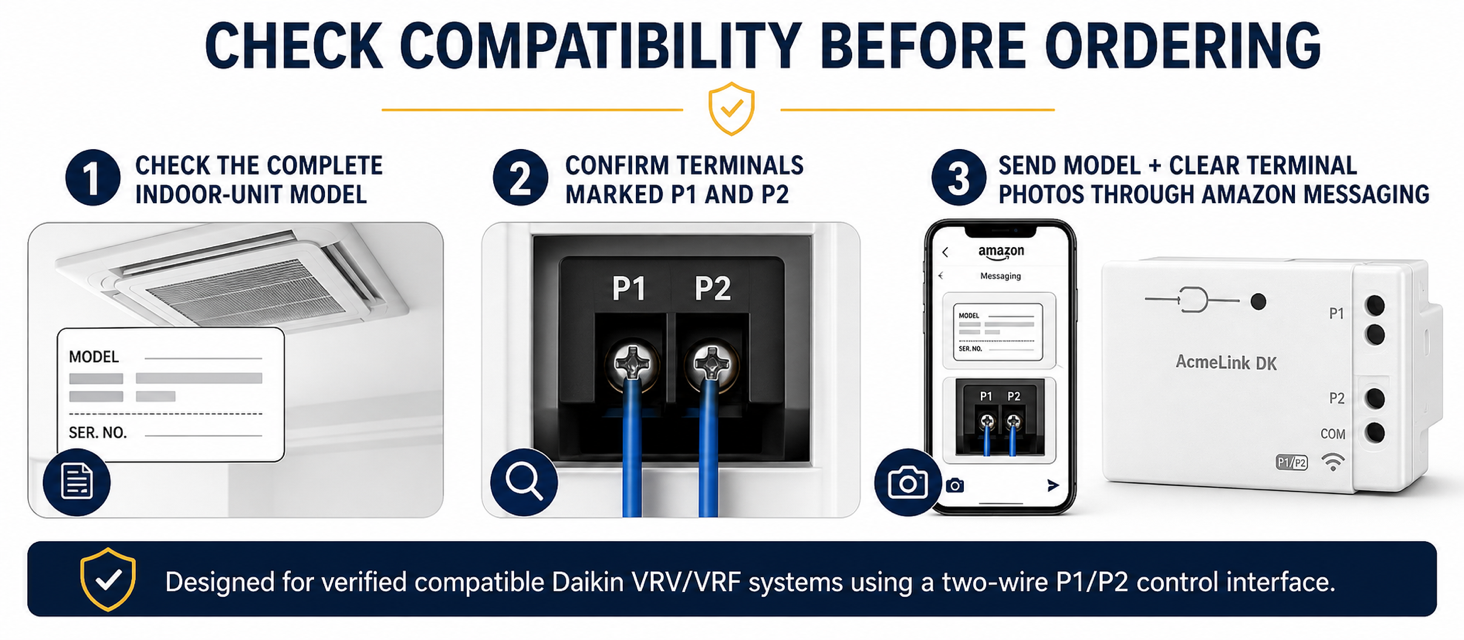

Confirm before purchase
Verify the full indoor-unit model and P1/P2 terminal identification. Send a model-label or terminal photo if unsure.
Installation and control demo
See AcmeLink DK connect to a Daikin P1/P2 controller route
This short demonstration shows the two-wire P1/P2 connection, reset and WiFi pairing indication, Tuya mobile app control and supported smart-speaker control.
AcmeLink DK is installed on the compatible Daikin P1/P2 controller route and can retain the original wired controller while adding remote smart control.
Professional detail
How to evaluate this VRF gateway model
AcmeLink DK is a Daikin smart gateway module used together with the original wired controller. It adds 2.4 GHz WiFi app control while keeping the non-polarized P1/P2 controller route in the system.
Product role
Hidden add-on gateway for compatible Daikin VRV/VRF indoor units with P1/P2.
Compatibility
Requires a compatible indoor unit and identifiable P1/P2 wired-controller terminals.
Smart control
Tuya Smart / Smart Life app control while retaining the original wired controller.
Buyer action
Send the complete indoor-unit model label or a clear P1/P2 terminal photo for confirmation.
Product overview
AcmeLink DK product detail
AcmeLink DK is a Daikin smart gateway module used together with the original wired controller. It adds 2.4 GHz WiFi app control while keeping the non-polarized P1/P2 controller route in the system.
This model belongs to the AcmeLink VRF Gateway family. Confirm the exact HVAC model, wiring interface and required control configuration before requesting a quotation.
Application details
Where this model is used
- Daikin VRF or split air conditioner smart control upgrade projects
- Apartments, villas, hotels and office AC remote control upgrades
- Projects that need to keep the original wired controller while adding smart control
- OEM AcmeLink gateway product line planning for HVAC distributors
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
Open English manualFunction details
P1/P2 smart control functions
AcmeLink DK adds app control without replacing the compatible original Daikin wired controller.
Non-polarized P1/P2
Two-wire installation with interchangeable P1 and P2 conductors.

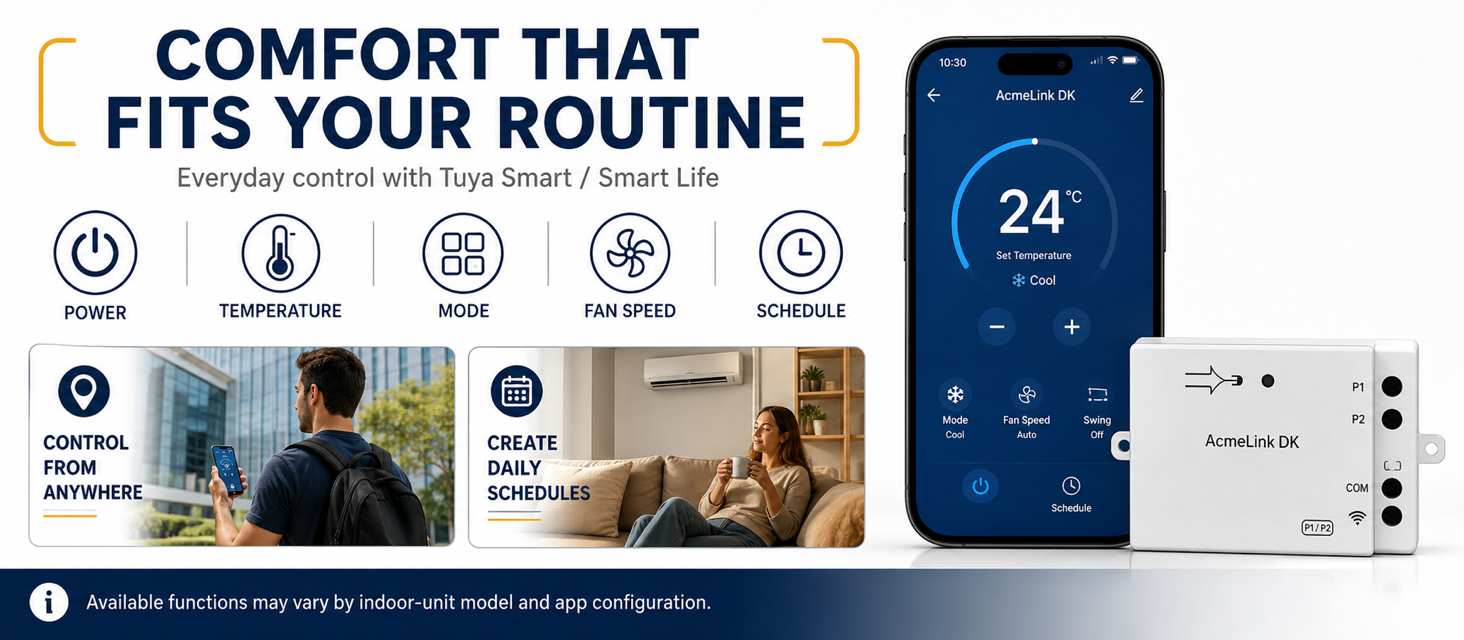

Remote app control
Control power, operating mode, target temperature and fan speed through the supported app.
Schedules
Create app schedules for everyday comfort and remote operation.
Parallel installation
Retain the original wired controller while adding AcmeLink DK to the same compatible P1/P2 route.
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- For Daikin projects, confirm whether the indoor unit uses the P1/P2 wired controller route.
- Gateway projects should be matched before sample testing because the wiring route changes by air conditioner brand.
- For WiFi pairing, reset the module first and confirm the indicator light state before app configuration.
- Keep AcmeLink gateway requirements separate from wall thermostat requirements during inquiry.
Specification summary
Model information
| Model | AcmeLink DK |
|---|---|
| Product family | AcmeLink HVAC Gateway |
| Connection | Daikin P1/P2 two-wire interface |
| Polarity | Non-polarized |
| Compatible system | Selected Daikin VRV / VRF indoor units with P1/P2 |
| App | Tuya Smart / Smart Life |
| Original controller | Parallel connection supported |
| Dimensions | 74 x 37 x 23 mm |
| Net weight | 50 g |
| OEM/ODM | Logo, label, packaging and manual support by project |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Verified product answers
AcmeLink DK questions
What connection does AcmeLink DK use?
It connects to the P1/P2 wired-controller interface on a compatible Daikin indoor unit.
Do the AcmeLink DK P1/P2 wires have polarity?
No. The two P1/P2 controller wires are non-polarized and interchangeable.
Can the original wired controller remain connected?
Yes. AcmeLink DK can connect in parallel while the original compatible wired controller remains in use.
Explore the range
Related products
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
Model reference and gateway selection
AcmeLink DK is also referred to as AcmeLink_DK. These names refer to this product route; specify the ordered configuration when requesting a sample or quotation.
Compare B19, B27, B25L, ME and DK · Read the matching DK manual
Documentation and source references
For confirmed Daikin indoor units with a P1/P2 controller interface. The compatible original wired controller can remain connected; confirm the full equipment model and wiring before installation.
Source: AcmeLink DK English manual. 11-page English installation and product reference. Use the matching instructions for the supplied DK configuration.
- P1/P2 connection and original-controller route — PDF page 3
- Technical specifications — PDF page 9
- Installation workflow — PDF page 10
Page numbers above refer to the PDF viewer. Documentation references checked on . This is a document cross-check, not a new installation test or a change to the supported-model list.
For your order, confirm the complete HVAC model, firmware, interface and required functions. How we handle technical sources and corrections.
