VRF Thermostat
AE-5507 connects through the Mitsubishi Electric CN105 interface using D+, D−, A1 and B1. Compatibility is confirmed from the complete indoor-unit model.
Model-specific information
This section explains why a buyer would choose this model instead of only seeing a generic VRF thermostat introduction.
Premium color-screen VRF thermostat projects where appearance, app control and OEM presentation matter.

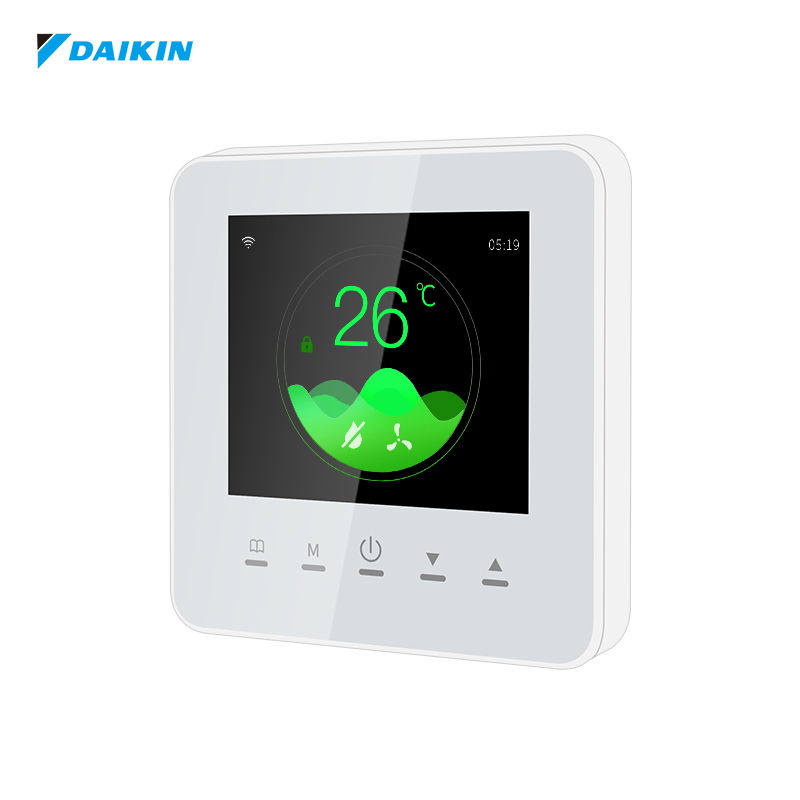

Large TFT color display with modern touch-panel appearance for hotel rooms, apartments and commercial showrooms.
Used as a smart wall thermostat body; brand-specific wiring, firmware and compatibility are confirmed on the selected VRF brand page.
Best when the buyer needs a higher-end visual model and can provide indoor unit brand, model number and wiring/interface photos.
Shared model details
The product appearance, functions and main documents are shared by compatible VRF brands. Each brand page only carries the wiring diagram and compatibility notes that actually change.
| Temperature sensing element | Thermistor |
|---|---|
| Control accuracy | ±1°C |
| Installation hole spacing | 60mm (standard) |
| Work environment | 0-45°C |
| Shell material | PC+ABS flame retardant |
| Temperature range | 16-32°C (adjustable) |
| Shared model | AE-5507-VRF |
|---|---|
| Display / panel | Premium TFT color-screen panel |
| Product form | Wall-mounted smart VRF thermostat |
| Smart options | WiFi, Zigbee, Tuya |
| Supported brand route | Daikin, Mitsubishi Electric, Fujitsu General, Toshiba, Hitachi, Carrier, YORK, Hisense, Midea, GREE, Haier, LG, Mitsubishi Heavy Industries |
| Brand-specific part | Wiring diagram, firmware matching and indoor unit compatibility |
| OEM/ODM scope | Logo, panel, firmware, packaging and manual language by project |
Professional detail
AE-5507-VRF WiFi Zigbee Smart VRF Thermostat is a shared AE model page for VRF or multi-split air conditioner control projects. The same product body can be matched to different supported AC brands, while the wiring diagram, firmware and compatibility notes are confirmed on each brand page.
Shared AE thermostat body for multiple VRF brands; brand pages handle wiring and firmware matching.
Confirm indoor unit model, interface generation and current controller wiring before sample or bulk order.
WiFi, Zigbee, Tuya options are product functions, not separate product categories.
Choose the AE appearance/model first, then confirm the AC brand wiring and firmware route.
Product overview
AE-5507-VRF WiFi Zigbee Smart VRF Thermostat is a shared AE model page for VRF or multi-split air conditioner control projects. The same product body can be matched to different supported AC brands, while the wiring diagram, firmware and compatibility notes are confirmed on each brand page.
This model belongs to the VRF Thermostat family. The page is structured to help buyers confirm application, protocol, compatible system, customization scope and inquiry details before asking for a quotation.
Application details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
Open English manualFunction details
WiFi, Zigbee, Modbus and other functions are treated as model features, not separate catalog categories.
Brand-oriented VRF compatibility route for clearer model selection
WiFi, Zigbee, Tuya control options according to the selected configuration
Remote app control and smart scene integration where supported
OEM panel, logo and documentation support for HVAC customers
Technical checklist
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
Specification summary
| Model | AE-5507-VRF |
|---|---|
| Product family | VRF Thermostat |
| Application | VRF air conditioner control |
| Protocol / function options | WiFi, Zigbee, Tuya |
| Compatible system | Daikin, Mitsubishi Electric, Fujitsu General, Toshiba, Hitachi, Carrier, YORK, Hisense, Midea, GREE, Haier, LG, Mitsubishi Heavy Industries |
| OEM/ODM | Logo, panel, firmware, packaging and manual support available by project |
| Documents | English manual or technical file can be supplied when available |
| Buyer type | HVAC distributors, brand owners, system integrators and project buyers |
| Compatible air conditioner brand | Daikin, Mitsubishi Electric, Fujitsu General, Toshiba, Hitachi, Carrier, YORK, Hisense, Midea, GREE, Haier, LG, Mitsubishi Heavy Industries |
| Control direction | VRF / multi-split indoor unit smart control |
| Smart function options | WiFi, Zigbee, Tuya |
| Typical project | Hotel rooms, apartments, offices and commercial HVAC retrofit |
| Buyer confirmation | Indoor unit model, wiring/interface, protocol and target quantity |
Mitsubishi Electric CN105 installation
Regional suffixes can differ. Confirm the full nameplate before ordering.
Product FAQ
VRF products should be matched by air conditioner brand and indoor unit interface. Confirm the brand and model before ordering.
The listed protocol options are WiFi, Zigbee, Tuya. App or voice control depends on the selected WiFi/Zigbee/Tuya configuration.
Send the AC brand, indoor unit model, project quantity, required protocol, logo needs and target market.
Internal links
VRF Thermostat
AE-5503-VRF WiFi smart thermostat for VRF air conditioner systems with app control, voice assistant support and OEM project supply. Brand-specific wiring and firmware are confirmed by project.
VRF Thermostat
AE-5502-VRF smart thermostat for VRF air conditioner control. TFT color LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat

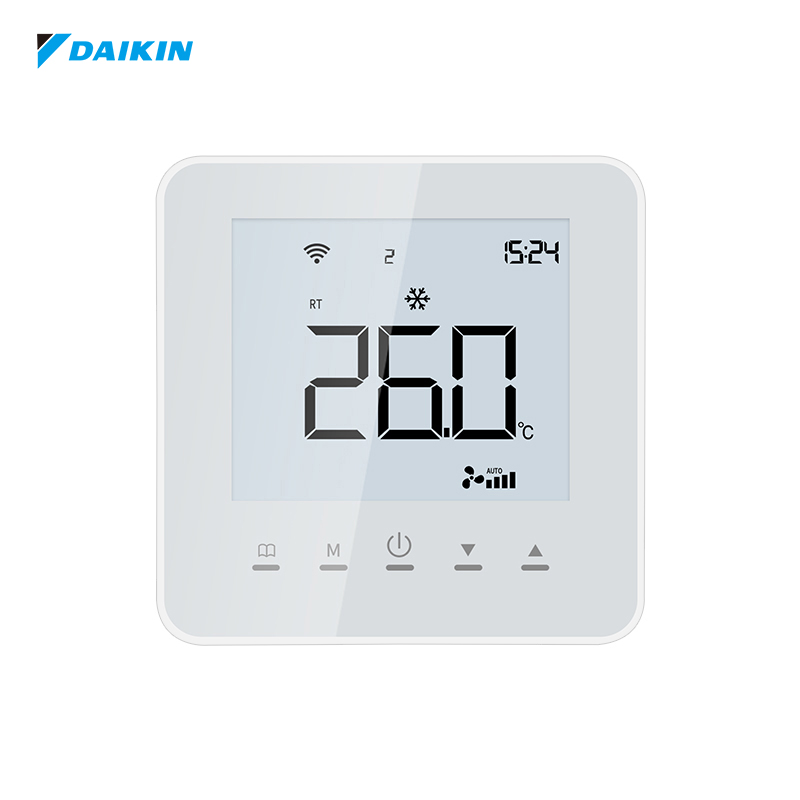

AE-5503-DB-VRF smart thermostat for VRF air conditioner control. White LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
