AE-5507 is an aftermarket smart room controller for selected Mitsubishi Electric PEFY, PEY and EZ indoor units using the CN105 interface.
Confirm the exact Mitsubishi Electric indoor-unit model and CN105 connector before ordering.
AE-5507 is the primary ACMELEC thermostat route for supported Mitsubishi Electric CN105 indoor units.
Model suffixes and regional versions can differ. Send the full indoor-unit nameplate before order confirmation.
CN105 presence alone does not guarantee compatibility across every regional model or control-board revision. Send the complete indoor-unit model and a clear photo of the CN105 connector before sample or bulk order.
Compatible model route
These are shared AE model pages. For Mitsubishi Electric projects, the product body stays the same, while the wiring diagram, communication firmware and compatibility confirmation are handled as the brand-specific part.
VRF Thermostat
AE-669-VRF smart thermostat for VRF air conditioner control. Black LCD curved-screen panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat
AE-740-VRF smart thermostat for VRF air conditioner control. Black TFT color screen panel option for VRF smart HVAC projects. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat
AE-940-VRF smart thermostat for VRF air conditioner control. TFT color LCD curved-screen option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat
AE-5502-VRF smart thermostat for VRF air conditioner control. TFT color LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat
AE-5503-DB-VRF smart thermostat for VRF air conditioner control. White LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
VRF Thermostat
AE-5503-VRF WiFi smart thermostat for VRF air conditioner systems with app control, voice assistant support and OEM project supply. Brand-specific wiring and firmware are confirmed by project.
VRF Thermostat
AE-5507-VRF smart thermostat for VRF air conditioner systems with WiFi, Zigbee, Tuya app and voice assistant control. Brand-specific wiring and firmware are confirmed by project.
VRF Thermostat
AE-5509-VRF smart thermostat for VRF air conditioner control. Straight-screen TFT color LCD option for VRF control projects. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
Technical summary
| Controller model | AE-5507-VRF |
|---|---|
| Target brand | Mitsubishi Electric |
| Indoor-unit interface | CN105 |

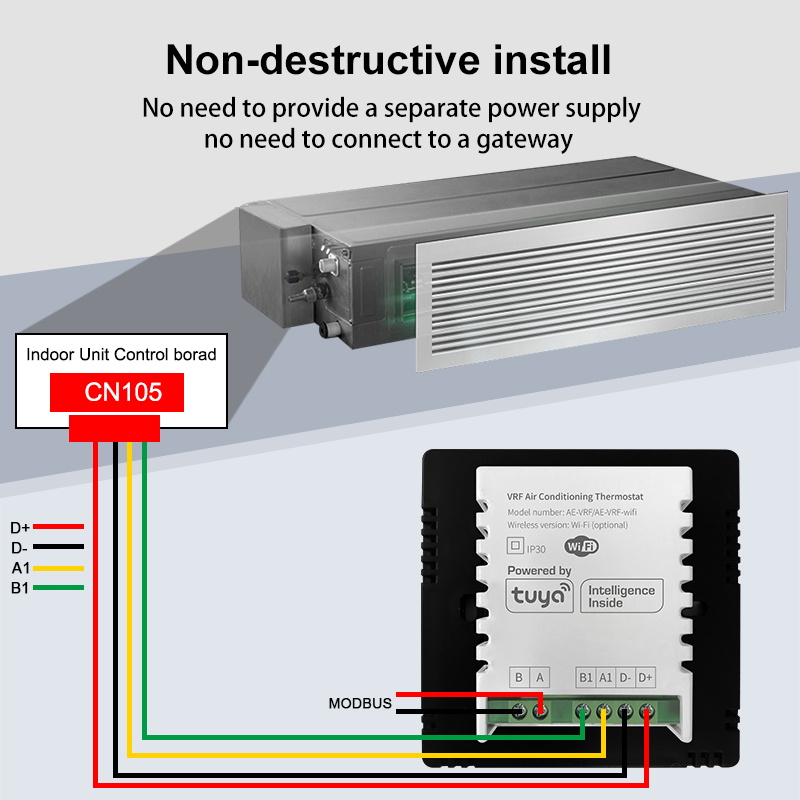

| Connection | D+, Dā, A1 and B1 as shown in the wiring diagram |
| Listed indoor-unit families | Selected PEFY, PEY and EZ series |
| Smart options | WiFi / Tuya; configuration confirmed by project |
| Installation route | Direct connection to the indoor-unit control board; no separate gateway |
| Required confirmation | Full indoor-unit model and CN105/control-board photo |
Compatibility FAQ
No. It is intended for selected indoor units with a compatible CN105 interface. Confirm the full indoor-unit model before ordering.
Selected PEFY, PEY and EZ series models are listed above. Regional suffixes and control-board revisions must still be checked.
Send the full indoor-unit model, a photo of the CN105 connector or control board, existing controller details and project quantity.
Brand-specific confirmation
Use this page to confirm whether AE-5507 matches the Mitsubishi Electric indoor unit, CN105 connector and project requirements before ordering.
