Which AE-940D output should be selected?
Choose 16 A for electric floor heating, 3 A for water-valve control or dry contact for a compatible boiler.
Floor Heating Thermostat
AE-940D Color WiFi Floor Heating Thermostat
Color-display thermostat for electric floor heating, hydronic heating or wall-mounted boiler control. Choose 16A electric load, 3A valve output or dry contact, with room/floor sensing and optional Smart Life WiFi.
- Model
- AE-940D
- Application
- Electric and hydronic floor heating
- Heating outputs
- 16A / 3A / dry contact
- Compatible brand
- ACMELEC
- Product family
- Floor Heating Thermostat
Shared model details
Full AE-940D floor heating thermostat information without repeated heavy files
The product page keeps the key parameters and selection logic visible. Larger manuals stay as download files, so buyers can inspect details without making every page unnecessarily heavy.
Product parameters
| Temperature sensor | Thermistor; internal, external or combined mode |
|---|---|
| Control accuracy | ±1°C |
| Setpoint range | 5-60°C, adjustable |
| Power supply | 220±10VAC |
| Electric heating output | 16A |
| Water heating output | 3A open/close valve control |
| Boiler output | Dry contact version |
| Floor protection | Adjustable floor-temperature warning limit |
| WiFi option | Smart Life app and supported voice control |
| Installation | 60 mm standard mounting-hole spacing |
Model and selection information
| Model | AE-940D / AE-940D-WIFI |
|---|---|
| Heating systems | Electric, hydronic or boiler control |
| Sensor choices | Room, floor or room + floor |
| Display | Orange heating and white standby status |
| Timing | Single timed on/off and configurable screen behavior |
| Project confirmation | Heating type, output, sensor and WiFi requirement |
Documents and project notes
- Use the same model page for shared appearance, schedule control and heating thermostat route.
- Electric floor heating and hydronic floor heating should be confirmed before selecting the final configuration.
- For electric heating, confirm load/current and floor sensor requirement before sample order.
floor heating display and operation
- Color room, set and floor temperature display
- Orange heating and white standby indication
- Built-in, external or combined sensor selection
- Floor-temperature limit and low-temperature protection
- Optional Smart Life WiFi app and supported voice control
- Touch operation, child lock and timed on/off
Product overview
AE-940D product detail
AE-940D Floor Heating Smart Thermostat is positioned for electric or water floor heating control. It is suitable for distributors and project buyers who need smart heating schedules, sensor support and OEM options in one product line.
This model belongs to the Floor Heating Thermostat family. Confirm the exact HVAC model, wiring interface and required control configuration before requesting a quotation.
Application details
Where this model is used
- Electric floor heating thermostat projects
- Water or hydronic floor heating room control where applicable
- Residential heating, apartment renovation and smart home channels
- Private-label heating thermostat supply for distributors
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
Open English manualFunction details
Three heating output configurations
Select AE-940D by the connected heating equipment, output requirement and sensor route.
16A electric heating
Direct control option for compatible electric floor-heating loads.
3A hydronic heating
Open/close valve output for water floor-heating systems.
Boiler dry contact
Potential-free switching version for a compatible wall-mounted boiler.

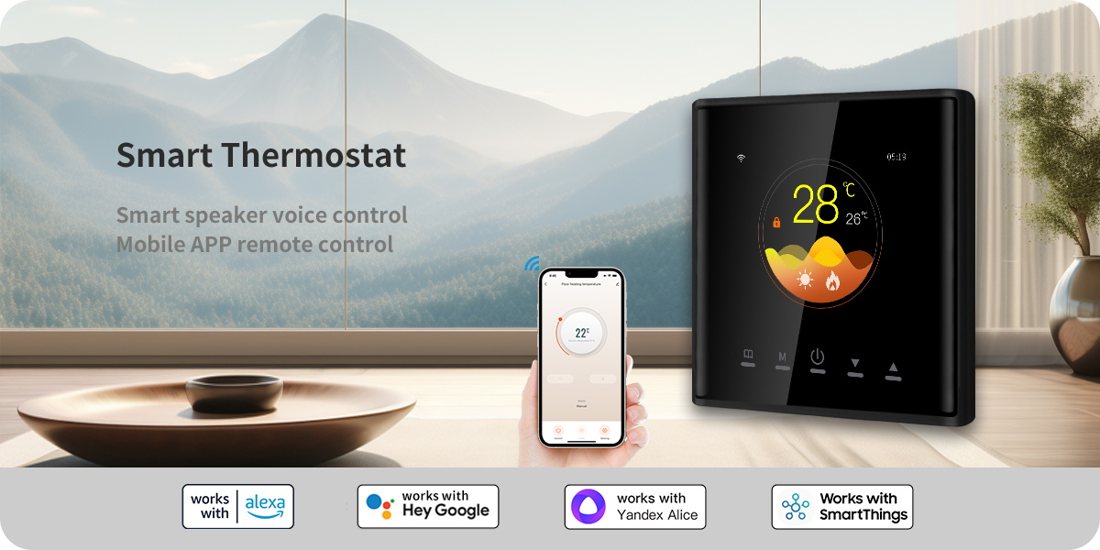

Smart Life WiFi
The optional WiFi model supports remote app control and compatible voice services.
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- Confirm electric or water floor heating before selecting the model.
- For electric heating, confirm load/current and sensor requirements.
- For hydronic heating, confirm actuator or valve control method.
- Confirm target market certificate needs before bulk production.
Specification summary
Model information
| Model | AE-940D / AE-940D-WIFI |
|---|---|
| Product family | Floor Heating Thermostat |
| Heating systems | Electric, hydronic or boiler control |
| Power supply | 220±10VAC |
| Output options | 16A electric / 3A water / dry contact |
| Setpoint range | 5-60°C |
| Accuracy | ±1°C |
| Sensor modes | Internal, external or combined |
| Smart option | Smart Life WiFi |
| Display | Tempered-glass color interface |
| Selection points | Heating type, output, sensor and WiFi requirement |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Verified product answers
AE-940D floor-heating questions
Can AE-940D limit floor temperature?
Yes. Connect the external floor sensor or use combined sensing, then configure the floor-temperature limit.
Is WiFi available on AE-940D?
Yes. AE-940D-WIFI supports Smart Life app control and compatible voice services.
