ACMELEC HVAC Controls
AE-5509D Floor Heating Thermostat
AE-5509D floor heating thermostat with room and floor sensing, 16A electric or 3A water heating configurations, color LCD and optional WiFi control.
AE-5509D specifications
| Heating output | 16A electric heating or 3A water heating, according to ordered configuration |
|---|---|
| Power supply | 220 ±10% VAC; check the ordered unit label and wiring diagram |
| Setpoint range | 5–60°C, adjustable |
| Temperature accuracy | ±1°C |
| Sensor selection | Room sensor, external floor sensor, or combined sensing |
| Ambient temperature | 0–45°C |
| Mounting hole spacing | 60 mm |
| Panel | Color LCD, glass touch panel and aluminium alloy housing |
Room comfort and floor protection
Choose room sensing, floor sensing or combined sensing to match the heating installation. Low-temperature protection, maximum floor-temperature warning and a child lock are available.
Timer and WiFi control
The panel supports a single on/off timer. The WiFi version adds Smart Life app control. Specify the WiFi version when requesting a quotation.
Select the correct heating output

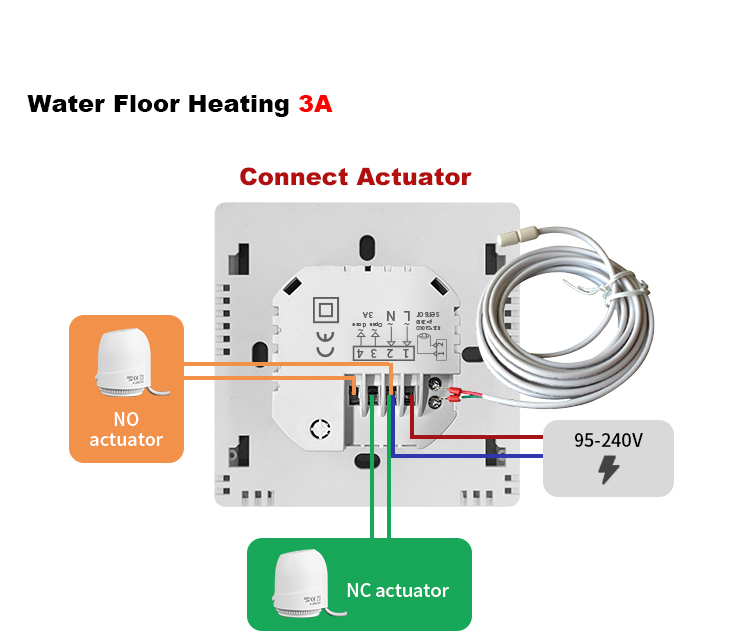

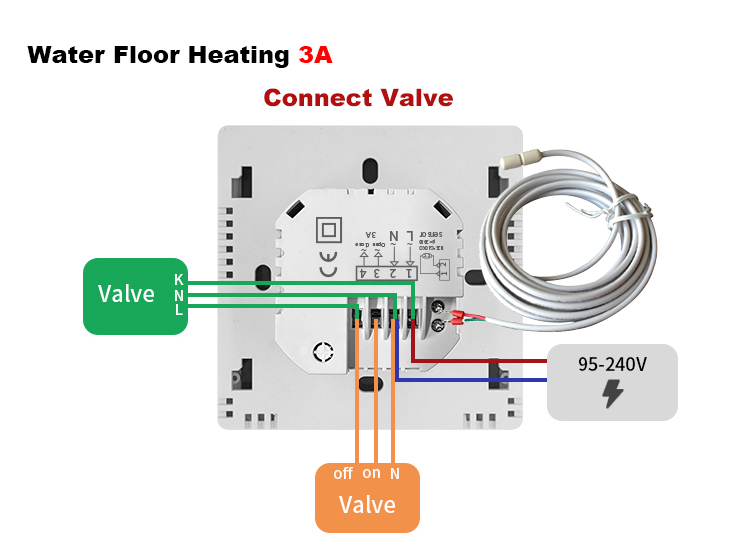

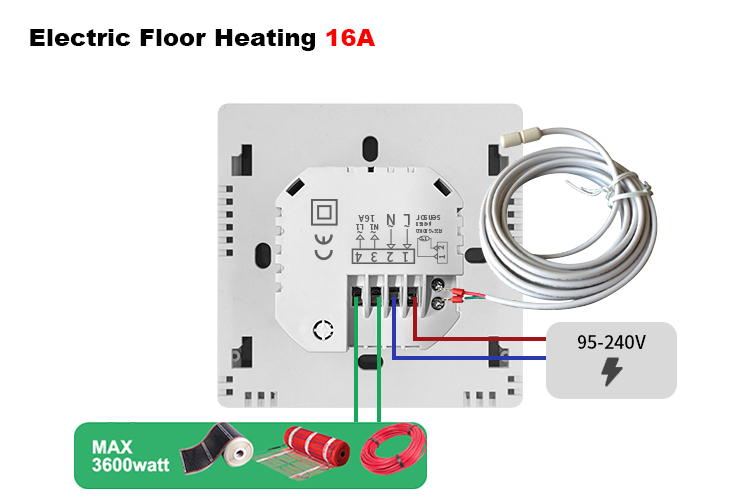

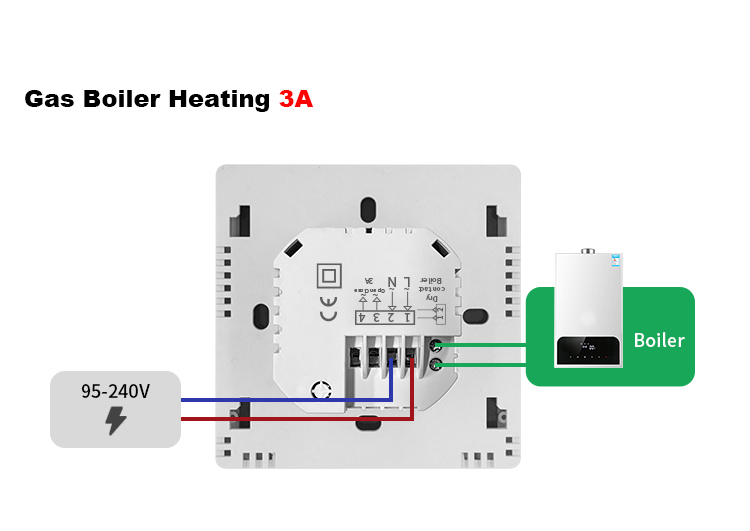

Electric floor heating, hydronic valve control and boiler dry-contact wiring use different configurations. Send the heating type, load or valve specification and required sensor arrangement before ordering.
Project enquiries from Uzbekistan
For distributor and installation enquiries, include quantities, heating type, power supply, required WiFi option and delivery city. ACMELEC can then confirm the model configuration and prepare an OEM quotation.
Technical references for procurement
The operating manual describes controls, sensor selection and wiring variants. Confirm the heating output, supply label and wiring diagram for the ordered configuration before installation.
English operating manual · Technical verification policy · Request configuration confirmation
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
