Cool / Heat
Select cooling or heating mode for everyday comfort.
MATTER OVER WI-FI · AC CONTROLLER

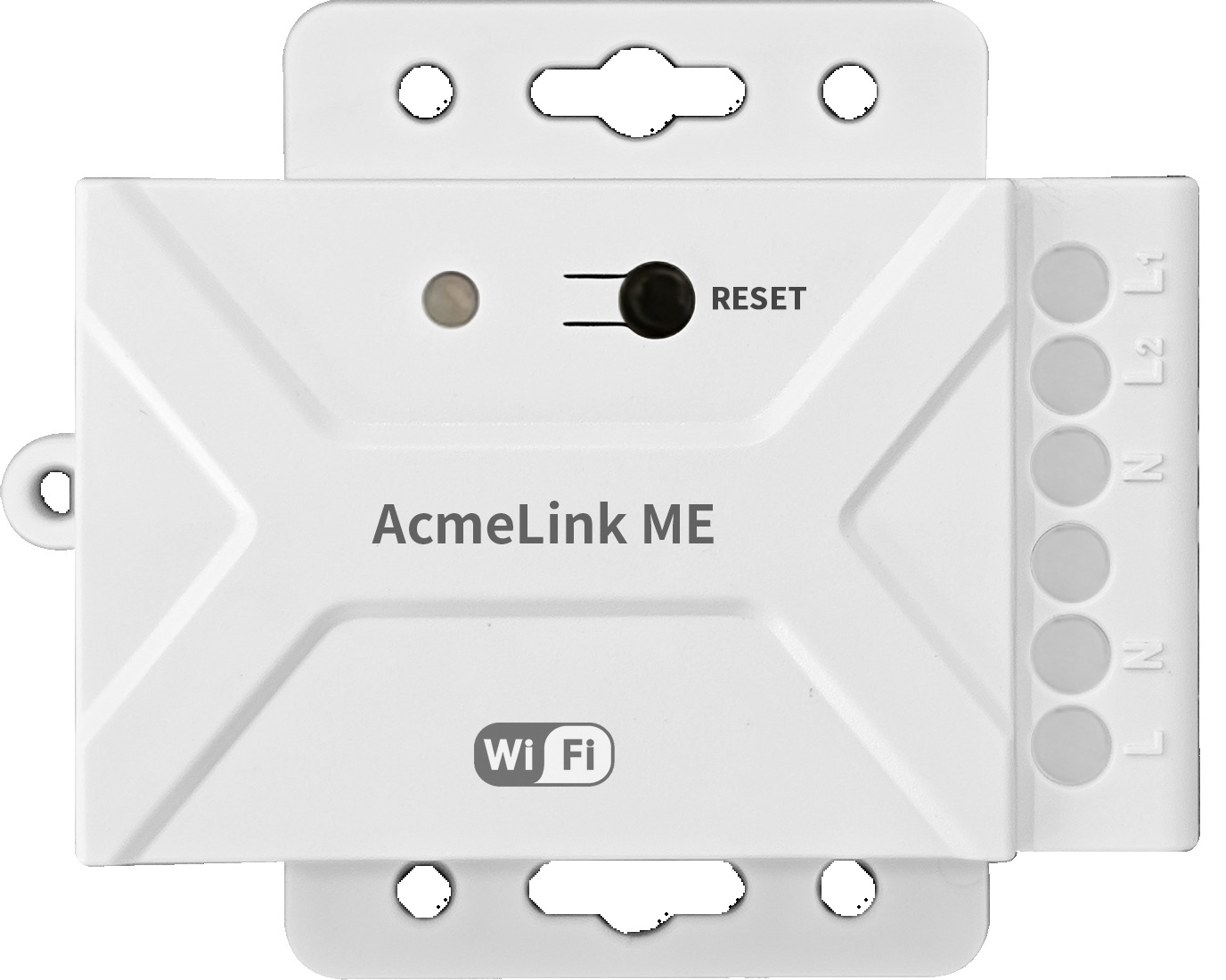

AcmeLink ME
Matter CN105 AC Controller
Matter over Wi-Fi control for compatible Mitsubishi Electric indoor units through the CN105 interface.
AcmeLink ME · CN105
CURRENT MATTER FUNCTIONS
Essential controls in Matter
Temperature
Adjust the temperature setpoint in your compatible Matter app.
Auto fan only
Automatic fan is the only fan-speed option in the current Matter version.
Need additional controls?
Other controls remain available in the original app. Do not expect all original-app functions to appear in the Matter interface.
HOW IT WORKS
A direct connection to your indoor unit
01
Matter app
Your compatible ecosystem
02
AcmeLink ME
2.4 GHz Wi-Fi
03
CN105 interface
Compatible Mitsubishi Electric indoor unit
Prepare a compatible Matter controller if required by your chosen ecosystem. App layout and remote-access requirements depend on the platform.
SELECTION GUIDE
Check compatibility before ordering
Match the equipment and interface
Confirm the complete Mitsubishi Electric indoor-unit model and identify the CN105 port on its control board. Use the matched connection harness.
Send the model label and a clear photo of the interface. We will confirm the suitable version before supplying a sample.
Ask about your indoor unit →Send us these details
- Full indoor-unit model number
- Clear CN105 terminal or port photo
- Existing wired-controller model, if fitted
- Target Matter ecosystem and market
INSTALLATION

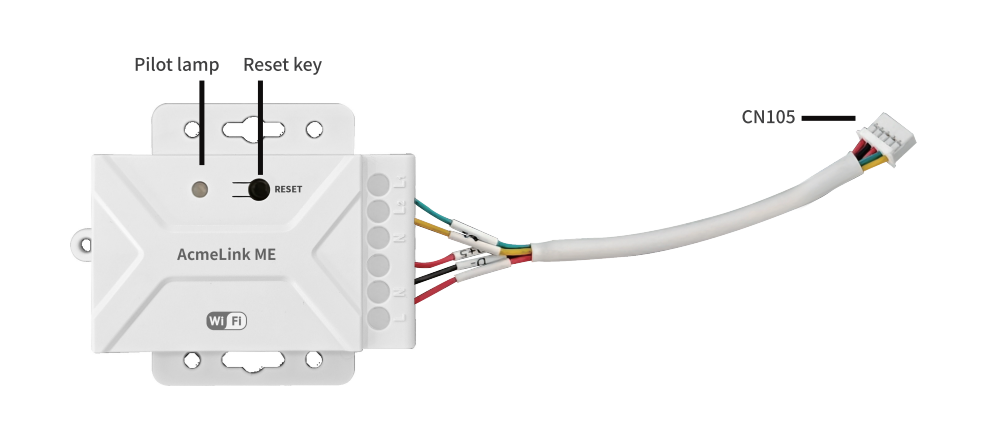

Connection reference
Connection illustrations reproduced from the supplied product manual. Have qualified HVAC personnel isolate power and follow the wiring information for the confirmed indoor-unit configuration.
TECHNICAL DATA
Product specifications
| Product | AcmeLink ME — Matter edition |
|---|---|
| Compatible equipment | Selected Mitsubishi Electric indoor units |
| Indoor-unit interface | CN105 |
| Wireless connection | Matter over 2.4 GHz Wi-Fi |
| Matter operating modes | Cool / Heat |
| Matter temperature control | Temperature setpoint adjustment |
| Matter fan speed | Auto only |
| Additional controls | In the original app |
| Dimensions | 68 × 58 × 25 mm |
| Net weight | 60 g |
| Housing material | PVC |
| Power consumption | 5 W |
SETUP CHECKLIST
Before installation
Confirm the system
Check the model, interface and controller arrangement before opening the indoor unit.
Prepare the network
Provide 2.4 GHz Wi-Fi coverage and the controller required by your Matter ecosystem.
Pair and test
Follow the supplied setup guide and Matter code. Check Cool / Heat, temperature and Auto fan operation.
PRODUCT OPTIONS
Find the right AcmeLink version
Discuss AcmeLink ME Matter for your project
Ask about model compatibility, samples, branded packaging and current availability.
Looking for the original Wi-Fi version? View AcmeLink ME Wi-Fi →
Matter product selection questions
Does AcmeLink ME work with every Mitsubishi Electric air conditioner?
No. Confirm the complete indoor-unit model, CN105 port and matching harness before ordering. The brand name or presence of a similar connector alone is not compatibility confirmation.
Which controls are available through Matter?
The current AcmeLink ME Matter version supports Cool / Heat, temperature setpoint adjustment and Auto fan only. Other controls remain in the original app.
Can I use AcmeLink ME in place of AcmeLink DK?
No. ME uses the Mitsubishi Electric CN105 route; DK uses the Daikin P1/P2 route. Select the controller matched to the confirmed indoor-unit interface.
Product and configuration reference
Published by ACMELEC / Nanjing Ikrey Network Technology Co., Ltd. · Updated .
Use the ordered product label, matching wiring diagram and sample specification to confirm the supplied version. Request the current firmware, tested ecosystem functions and finished-product certification record for your target market.
