Toshiba WiFi VRF Smart Thermostat
WiFi smart thermostat for Toshiba VRF air conditioner systems, built for OEM and commercial HVAC projects.
- Model
- AE-TS-VRF
- Application
- Toshiba VRF control
- Protocols
- WiFi
- Compatible brand
- Toshiba
- Product family
- VRF Thermostat
Selection reference
Toshiba connection: what the reference shows

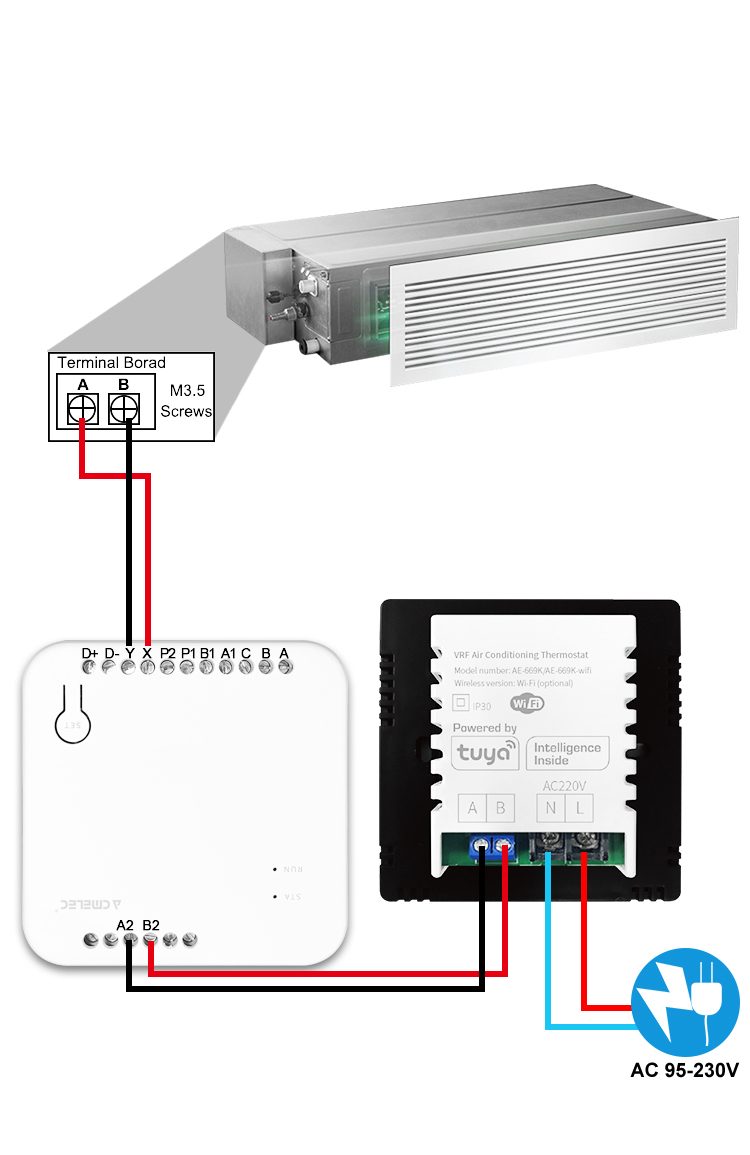

The ACMELEC Toshiba wiring illustration shows an A/B terminal board connected through an interface module to a separately powered wall panel.
Specify whether your Toshiba installation is replacing a wired controller or adding a new room control. Include the controller model and terminal photograph so the required module and panel can be quoted together.
Open the existing Toshiba wiring illustration. This is a supplier-provided selection reference, not a model-specific installation approval. Have a qualified installer use the wiring diagram supplied for the exact ordered hardware and indoor unit; do not infer terminal polarity or supply voltage from wire colours.
| Decision | What to establish |
|---|---|
| Indoor-unit match | Full Toshiba model, controller reference and board/terminal photograph. |
| Ordered assembly | Confirm the panel model, any interface module, harness and matched firmware together. The pictured assembly is not a packing list. |
| WiFi functions | Confirm the app, network requirements and supported room controls for the ordered WiFi configuration. This listing does not establish Zigbee or Modbus support. |
Compare the white LCD AE-5503-DB panel with the curved TFT AE-940 panel after the Toshiba connection has been checked. Panel appearance does not establish compatibility.
Application details
Where this model is used
- Toshiba VRF or multi-split air conditioner smart control projects
- Apartments, offices, hotels and commercial HVAC retrofit projects
- Smart home channels that need app or voice assistant control
- OEM thermostat programs for regional HVAC brands and importers
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
A model-matched manual is not confirmed here. Request the manual and wiring diagram for the exact ordered version before installation.
Function details
Control functions and buyer value
Confirm which control functions are included in the ordered configuration. Do not assume that every protocol or feature is available on every version.
Function 1
Confirm the exact indoor-unit model, interface and matched controller configuration
Function 2
WiFi control options according to the selected configuration
Function 3
Remote app control and smart scene integration where supported
Function 4
OEM panel, logo and documentation support for HVAC customers
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- Confirm the exact Toshiba indoor unit model before sample or bulk order.
- VRF control compatibility may depend on indoor unit interface, generation and wiring method.
- For brand projects, provide target market and required smart platform before quotation.
- For hotels or apartments, confirm quantity, room control logic and installation schedule.
Specification summary
Model information
| Model | AE-TS-VRF |
|---|---|
| Product family | VRF Thermostat |
| Application | Toshiba VRF control |
| Protocol / function options | WiFi |
| Compatible system | Toshiba |
| OEM/ODM | Logo, panel, firmware, packaging and manual support available by project |
| Documents | English manual or technical file can be supplied when available |
| Buyer type | HVAC distributors, brand owners, system integrators and project buyers |
| Compatible air conditioner brand | Toshiba |
| Control direction | VRF / multi-split indoor unit smart control |
| Smart function options | WiFi |
| Typical project | Hotel rooms, apartments, offices and commercial HVAC retrofit |
| Buyer confirmation | Indoor unit model, wiring/interface, protocol and target quantity |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Product FAQ
Questions buyers usually ask
Is this a universal VRF controller?
VRF products should be matched by air conditioner brand and indoor unit interface. Confirm the brand and model before ordering.
Can it work with app or voice control?
This listing is for a WiFi control route. Confirm the supported app and voice-assistant integration for the exact configuration before ordering; do not assume that Zigbee or Modbus is included.
What information is needed for quotation?
Send the AC brand, indoor unit model, project quantity, required protocol, logo needs and target market.
Selection reference
Choose the panel after confirming the connection
VRF thermostat range lists the available brand and panel routes. Send the Toshiba connection details with your quotation request so the sample is matched to the system being installed.
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
