Configurable VRF Thermostat

S20 Configurable Multi-brand VRF Thermostat

A configurable VRF wall thermostat platform for supported major brands. Installers select the appropriate brand protocol through Bluetooth configuration, then connect the matching 2-, 3- or 4-wire communication terminals.

Check Model & QuoteCheck Compatibility
Platform
S20 / AE-VRF
Configuration
Bluetooth protocol loading
Interfaces
2-, 3- and 4-wire routes
Smart control
Optional Tuya WiFi
Panel options
LCD or TFT
English Brochure中文资料

Selection and installation reference

S20: readable interface selection reference

S20 is a wall thermostat with a selected brand protocol loaded through Bluetooth setup. Bluetooth protocol configuration is distinct from optional Tuya WiFi app control. Select the indoor-unit interface, firmware profile and panel before ordering.

The following 20 entries transcribe the supplied compatibility panels. “Listed as supported” describes the source matrix, not approval for every indoor unit from that brand. Every order still requires exact model and terminal confirmation. Terminal notation is retained from the source; it is not an instruction to bridge terminals or a substitute for a model-specific wiring diagram.

S20 brand and interface reference
Brand / systemSource connection notationSource status
Daikin2-wire: P1/P2Listed as supported
Hitachi2-wire: P1/P2Listed as supported
Hitachi4-wire: A1/B1/D-/D+Check specific model
Hisense2-wire: P1/P2Listed as supported
York2-wire: P1/P2Listed as supported
Toshiba2-wire: X/YListed as supported
Panasonic2-wire: X/YListed as supported
Mitsubishi Heavy Industries2-wire: P1/P2Listed as supported
Mitsubishi Heavy Industries3-wire: A1&B1, D-, D+Listed as supported
Midea4-wire: A1/B1/D-/D+Check specific model
Midea3-wire: A1, D-, D+Listed as supported
Gree2-wire: P1/P2Listed as supported
Haier3-wire: A/B/CCheck specific model
Haier4-wire: (A1&B1,D-,D+) CBACheck specific model
Haier4-wire: (A1&B1,D-,D+) CN4Listed as supported
Gree2-wire: H1/H2Listed as supported
Gree4-wire: A1/B1/D-/D+Check specific model
Daikin MX4-wire: A1/B1/D-/D+Check specific model
Mitsubishi Electric4-wire: A1/B1/D-/D+Listed as supported
Hisense4-wire: A1/B1/D-/D+Listed as supported

Before a sample is prepared

Send the indoor-unit model including suffix, controller model, terminal photograph, required LCD/TFT panel, finish and WiFi requirement. Request the corresponding power and wiring diagram, protocol-loading instructions and final packing list. Do not select a wiring route by wire count alone.

References: compatibility panel 1 · compatibility panel 2 · English S20 brochure. Some source terminal labels combine conductors or connector names; confirm their meaning before installation.

Complete platform presentation

One configurable VRF thermostat platform, explained step by step

Explore the universal interface concept, wiring architecture, compatibility matrix, Bluetooth setup, Tuya functions, wall-panel families, finishes, specifications and selection guide.

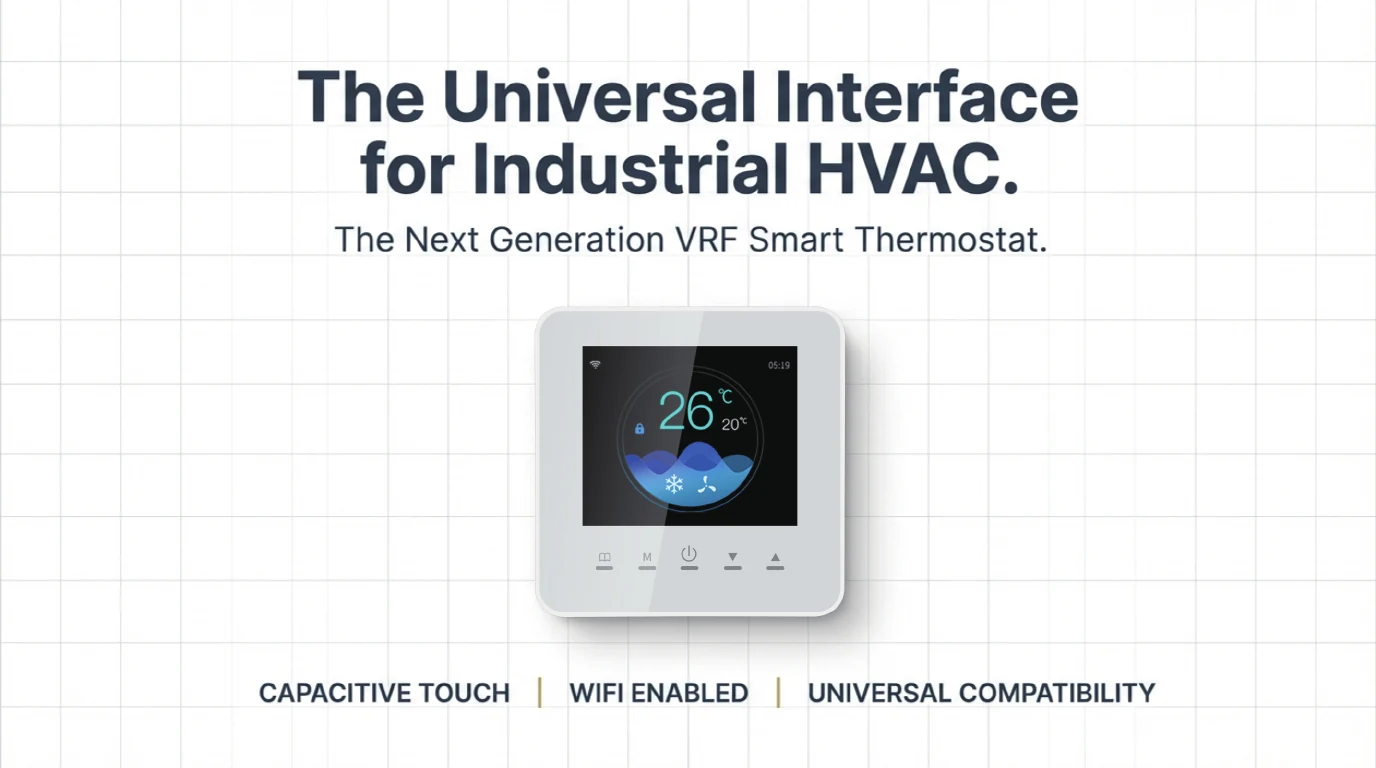

S20 next generation universal VRF smart thermostat platform

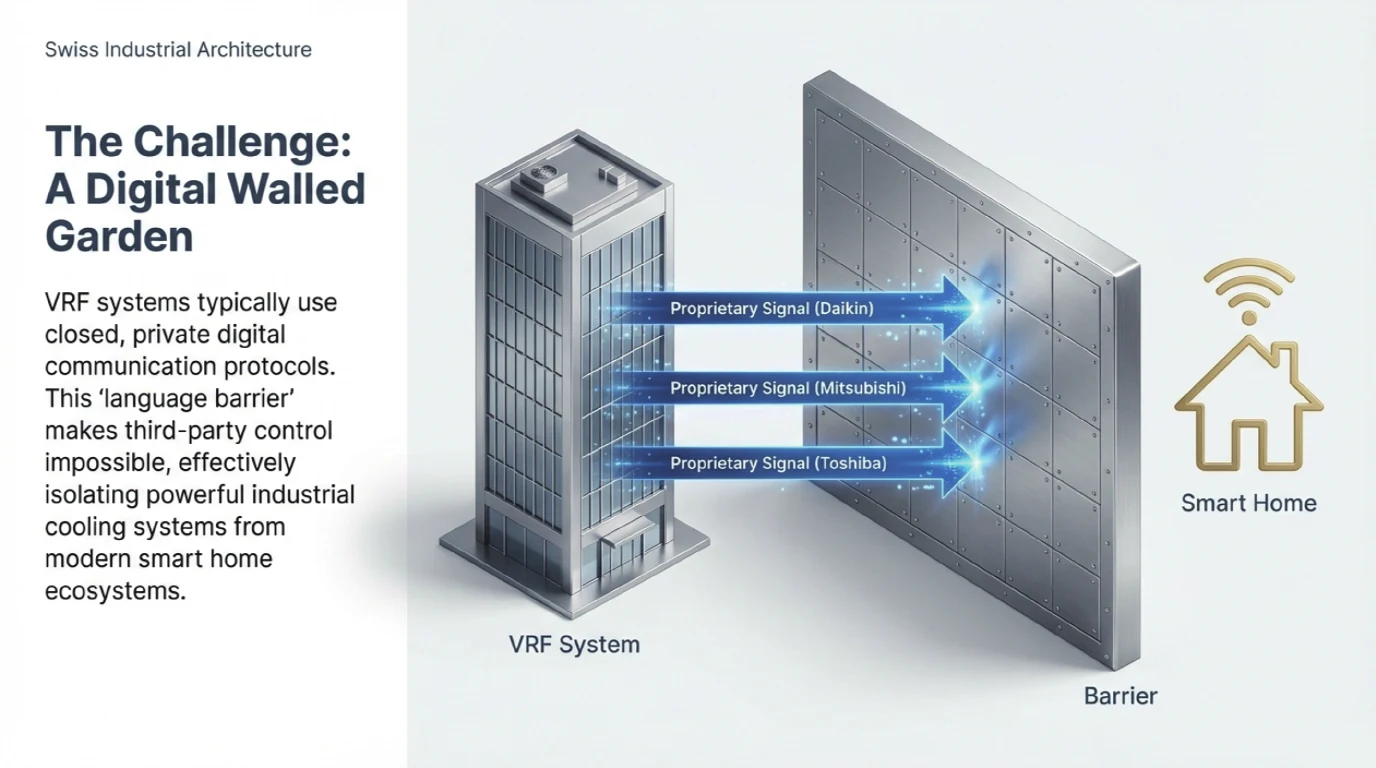

VRF proprietary protocol challenge for smart home integration

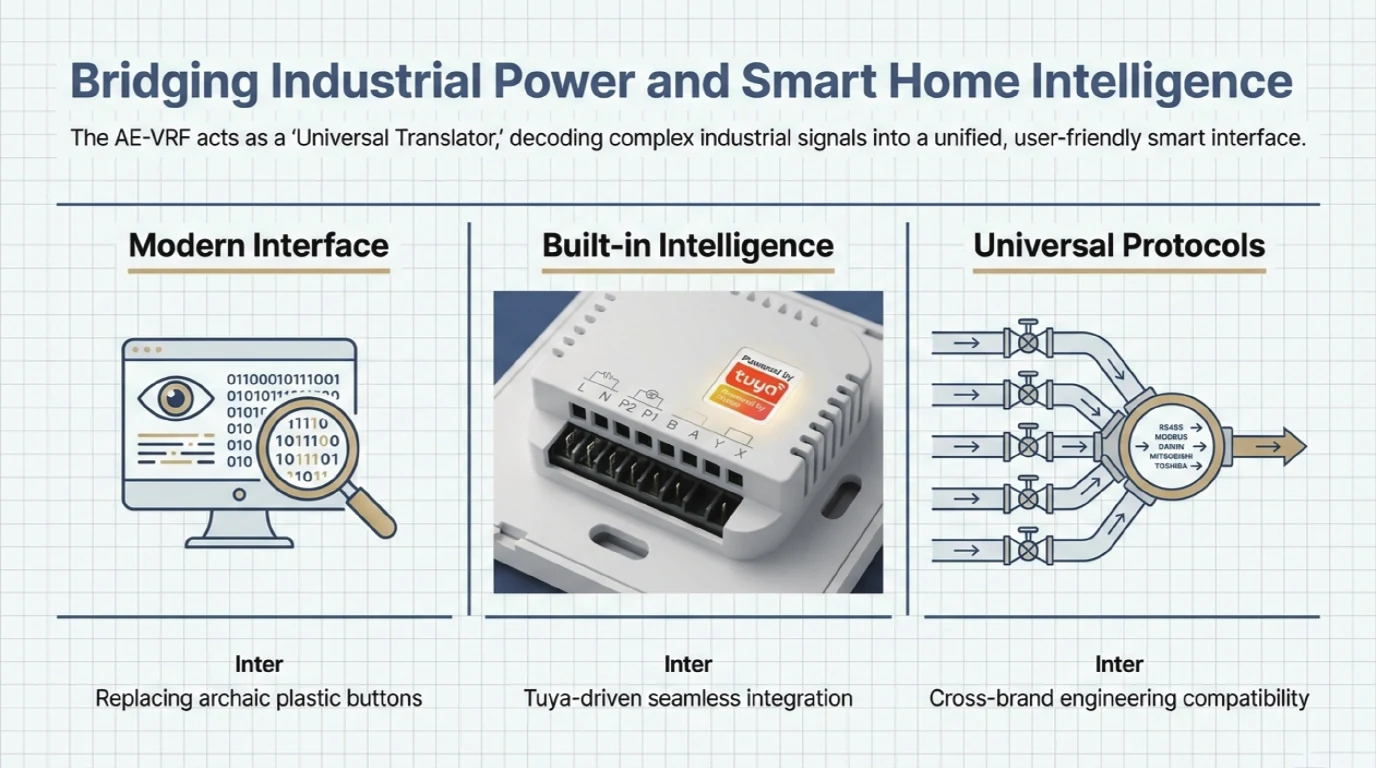

S20 bridge between industrial HVAC power and smart home intelligence

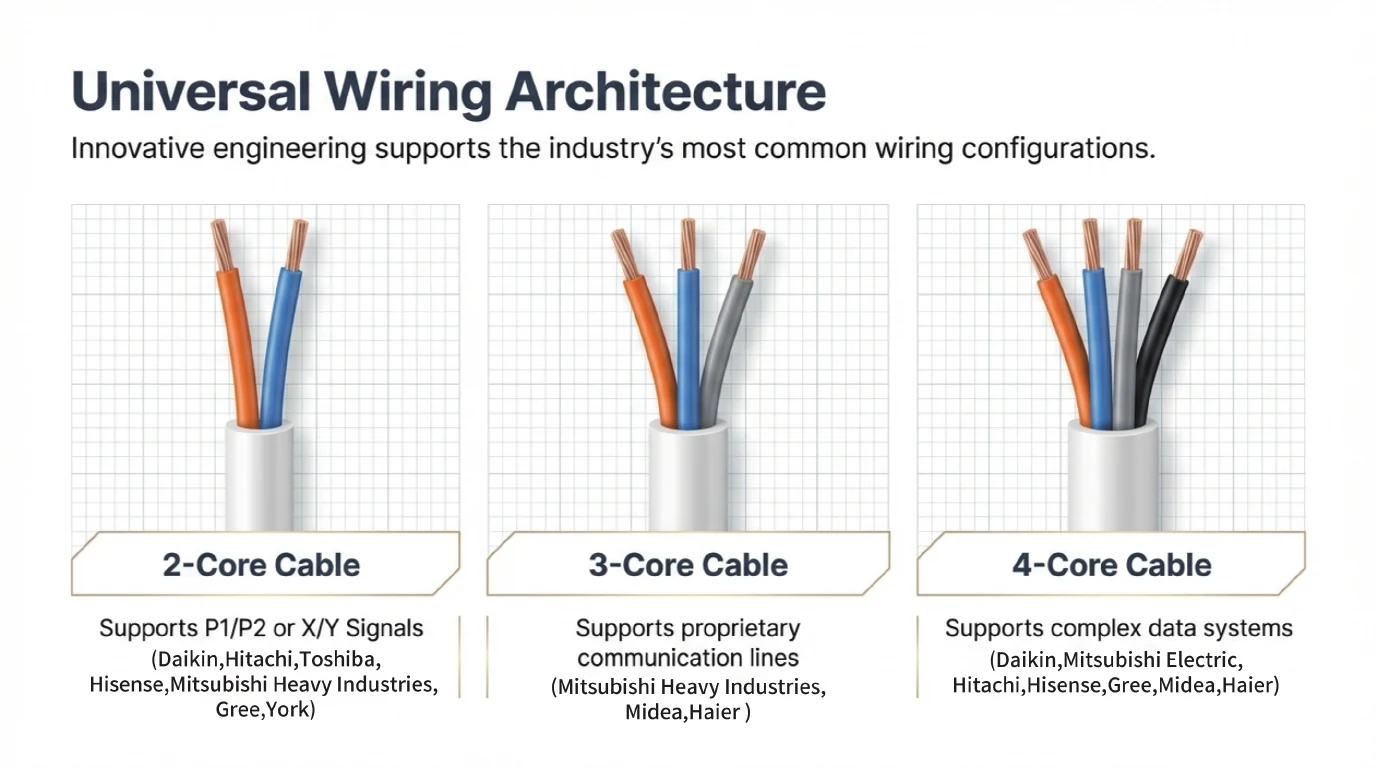

S20 universal two three and four core wiring architecture

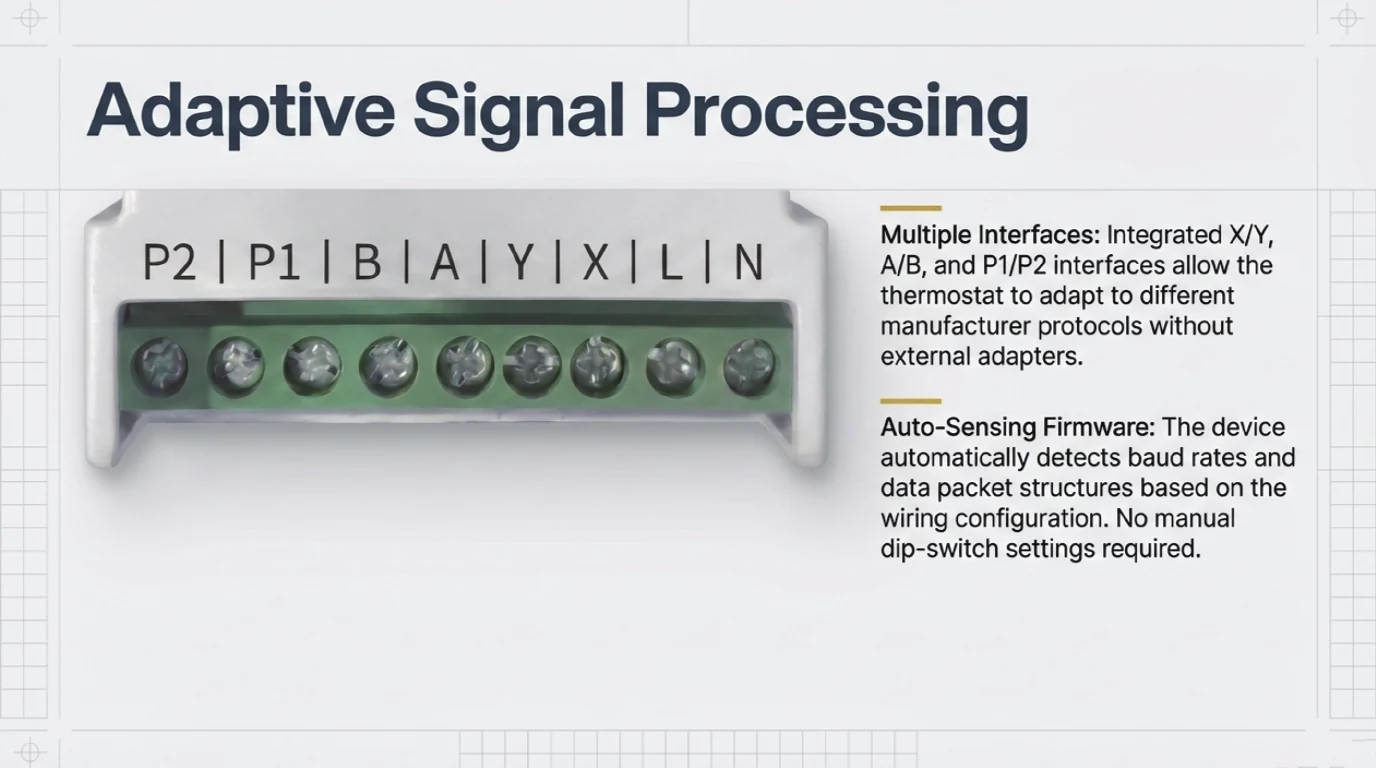

S20 adaptive signal processing and multi-interface terminals

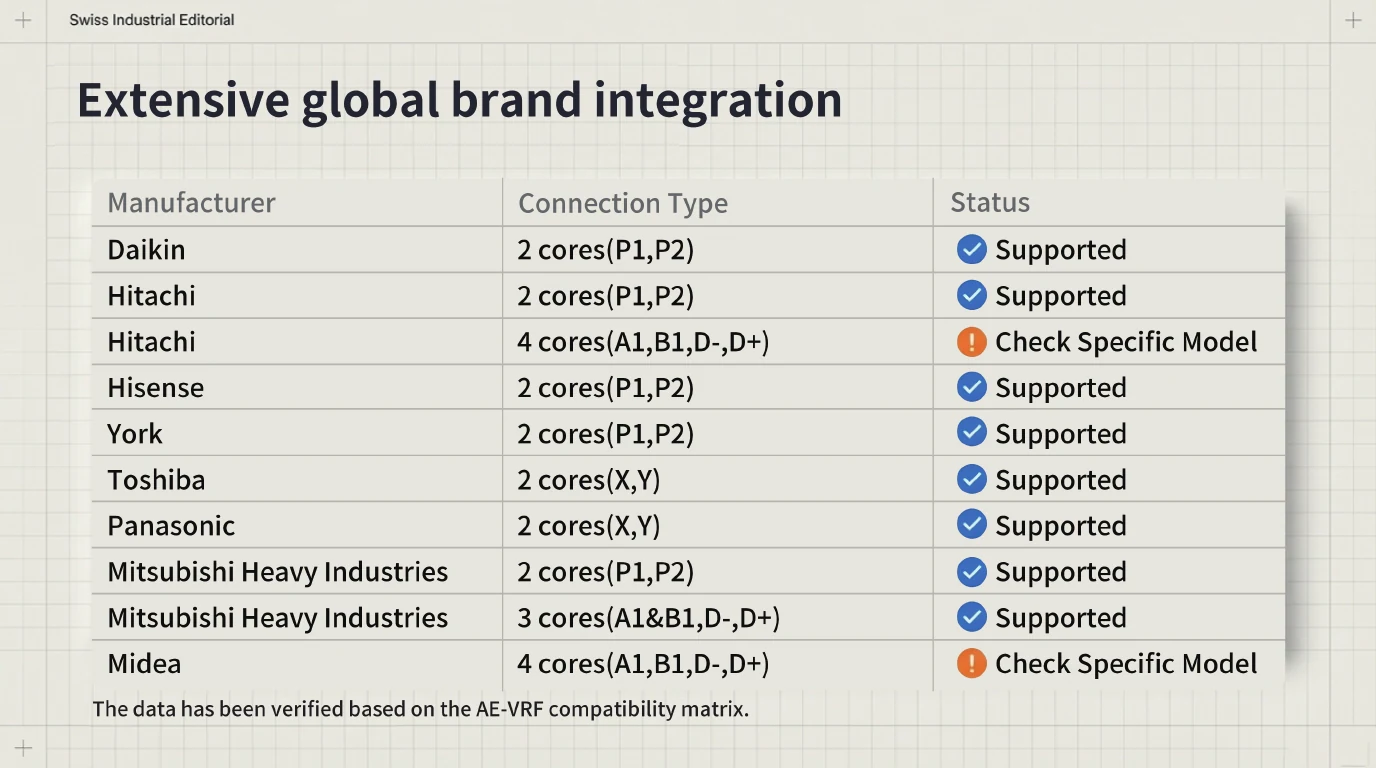

S20 supported brand and connection compatibility matrix part one

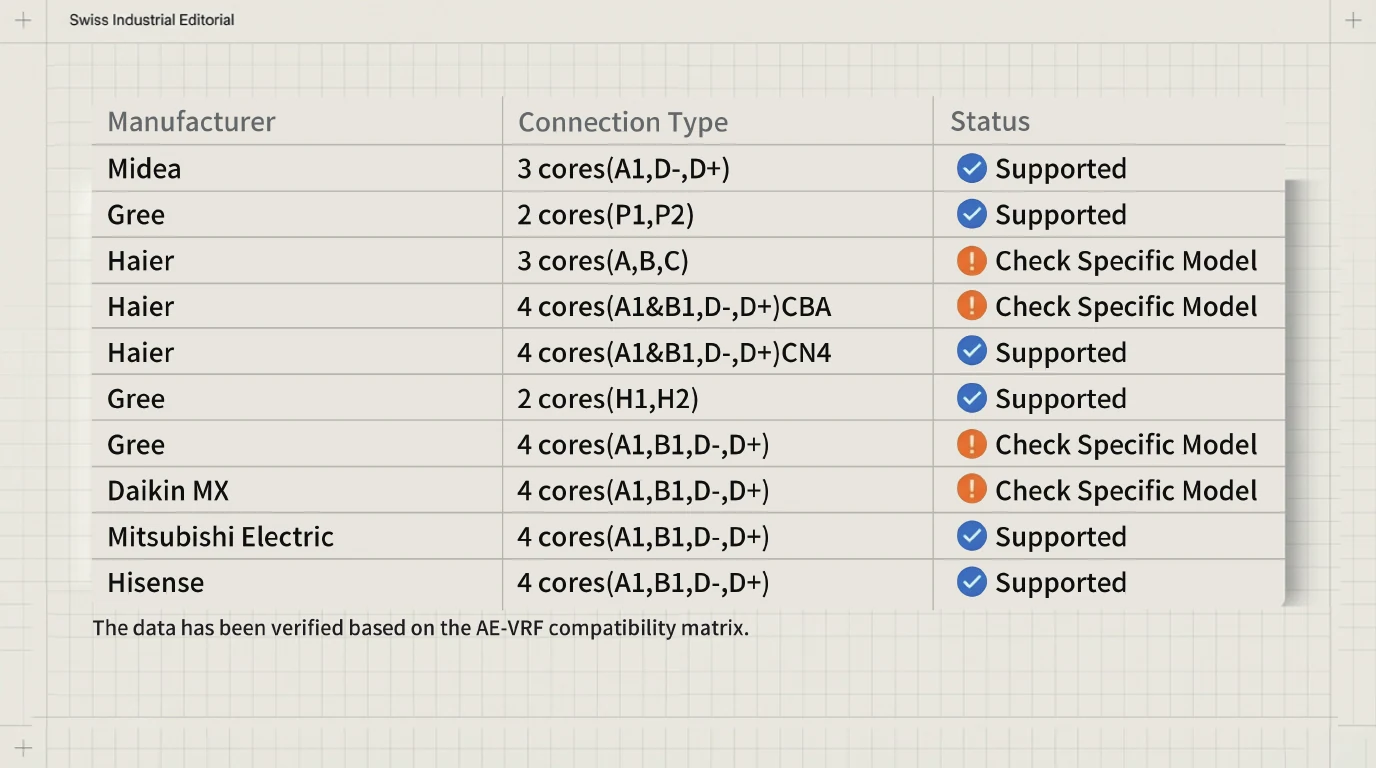

S20 supported brand and connection compatibility matrix part two

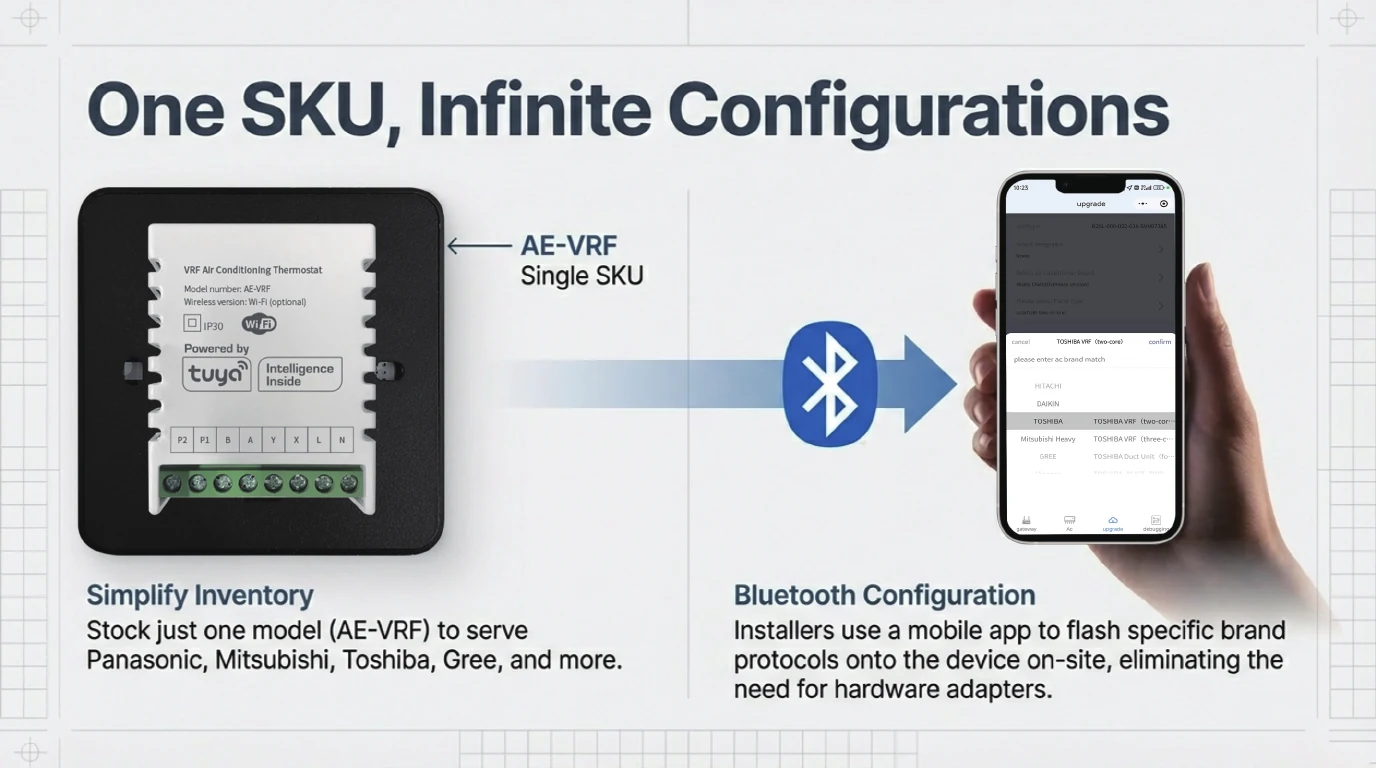

S20 one SKU with Bluetooth configurable brand protocols

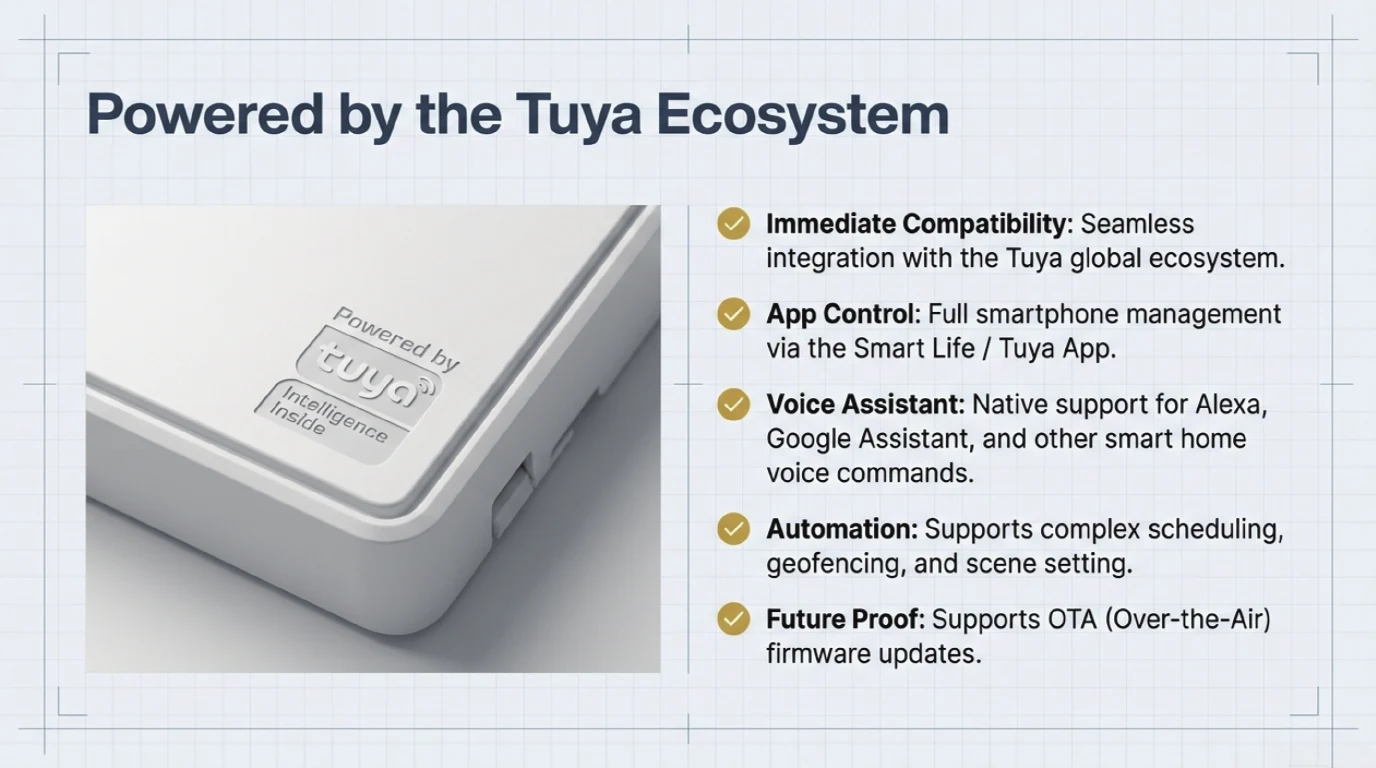

S20 powered by Tuya ecosystem with app voice and scheduling functions

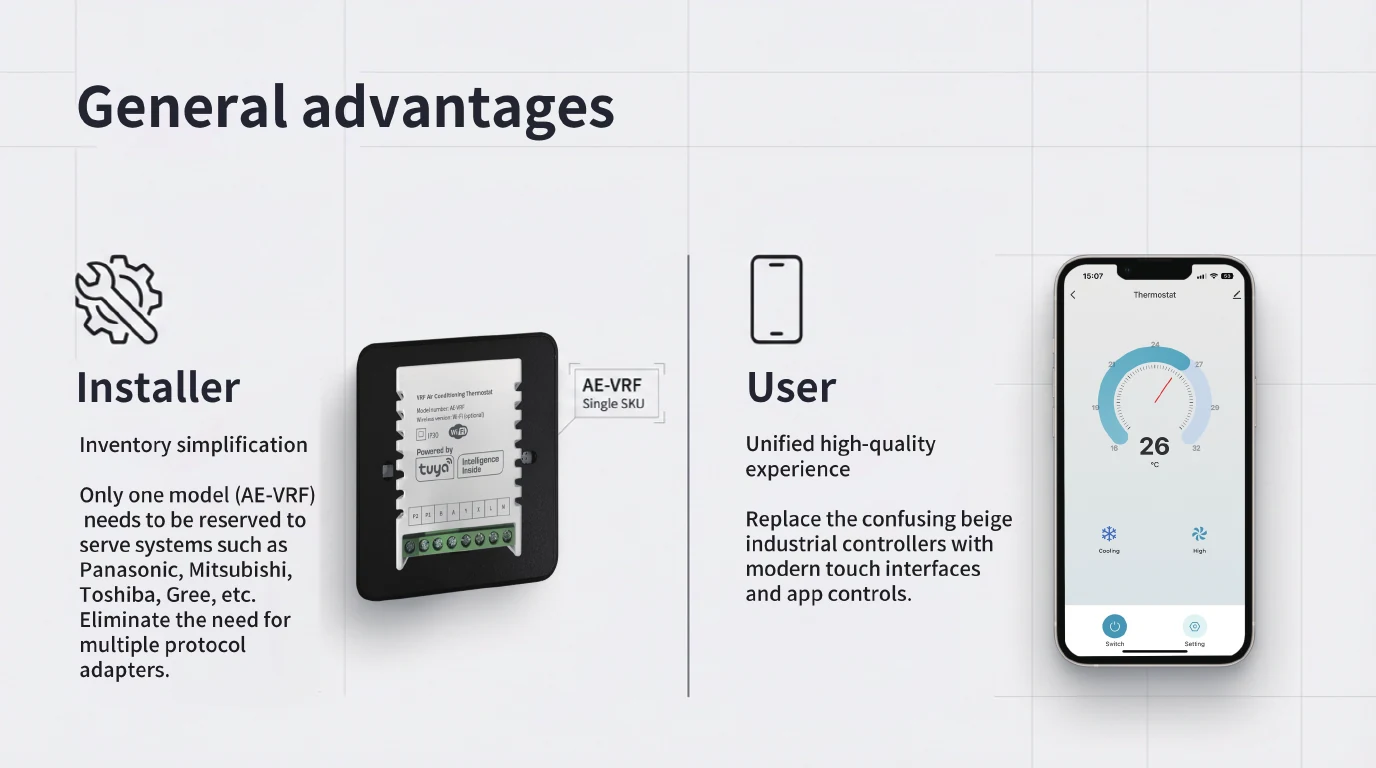

S20 installer and user advantages

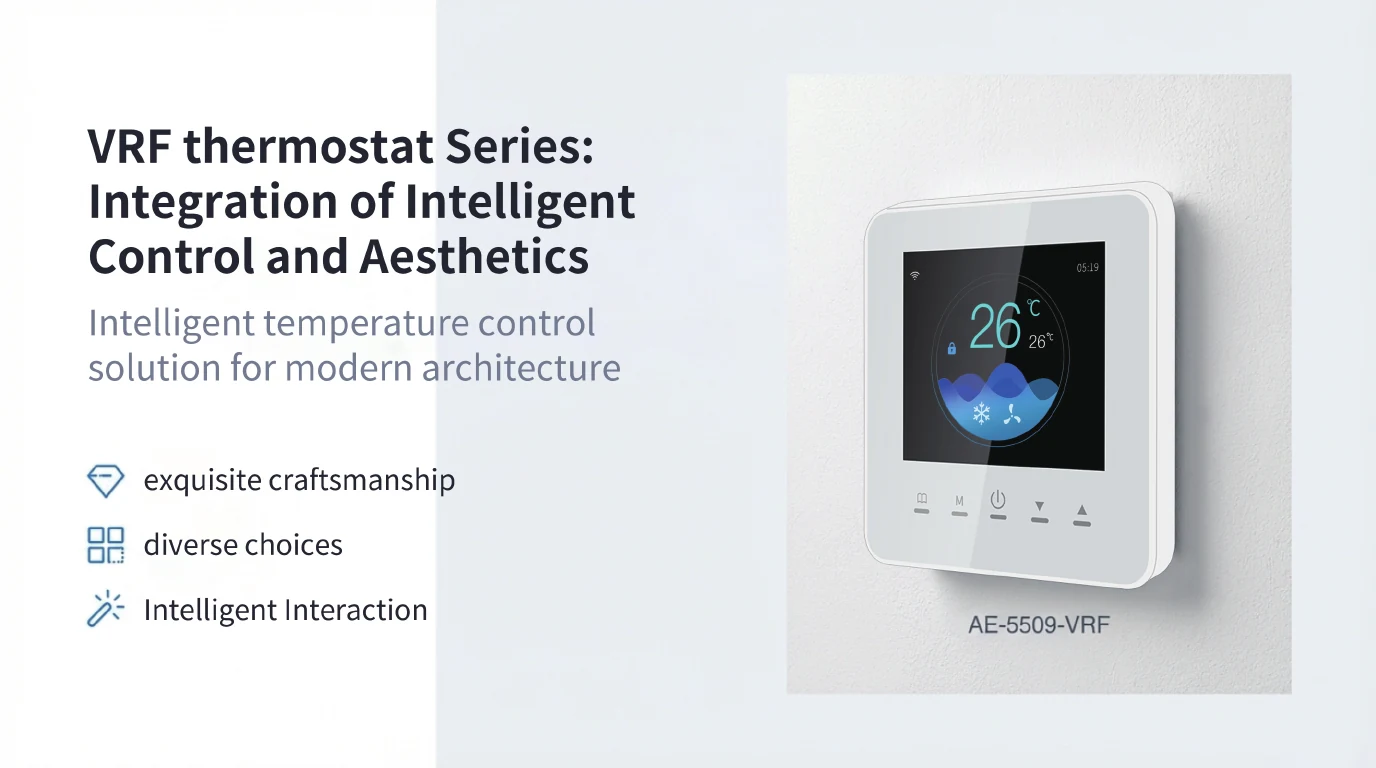

S20 VRF thermostat intelligent control and aesthetics concept

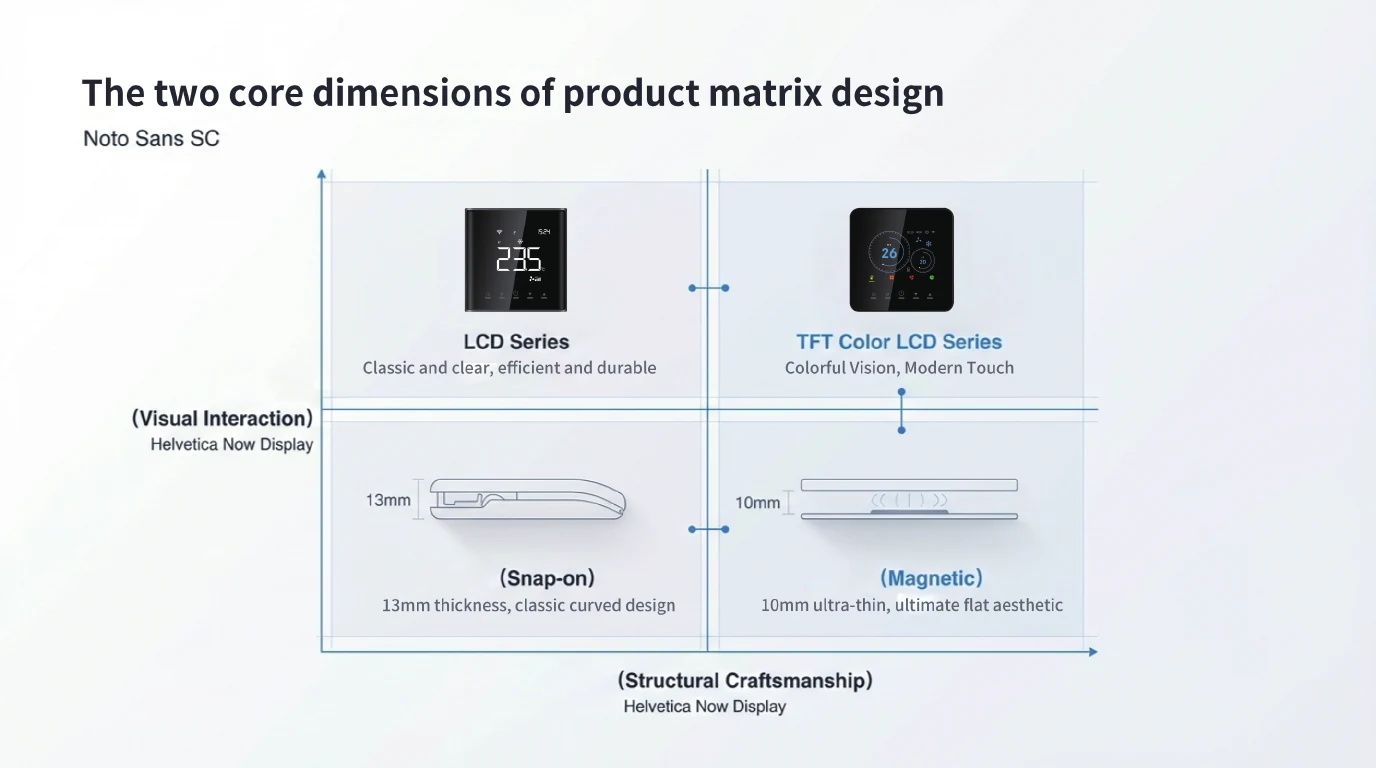

S20 product matrix for visual interaction and mounting structure

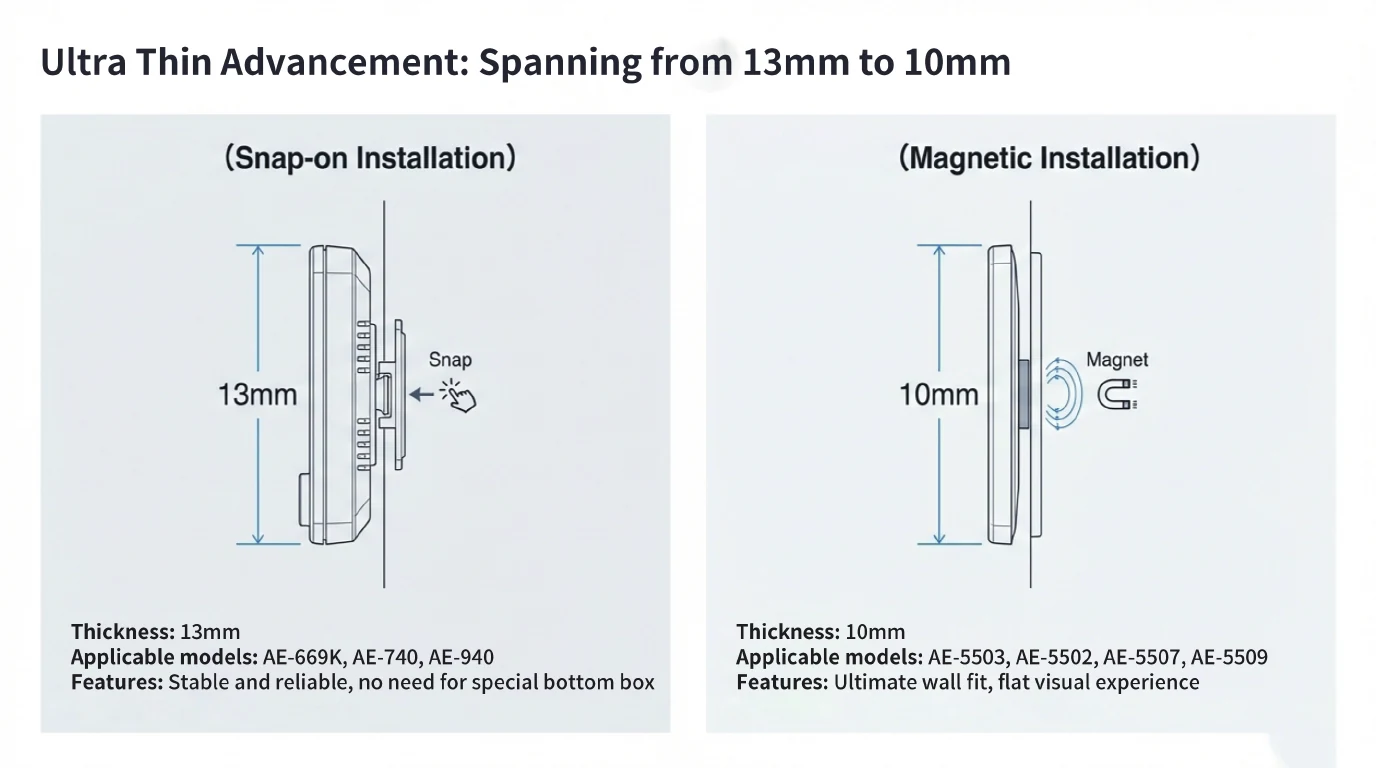

S20 snap-on and magnetic ultra thin mounting options

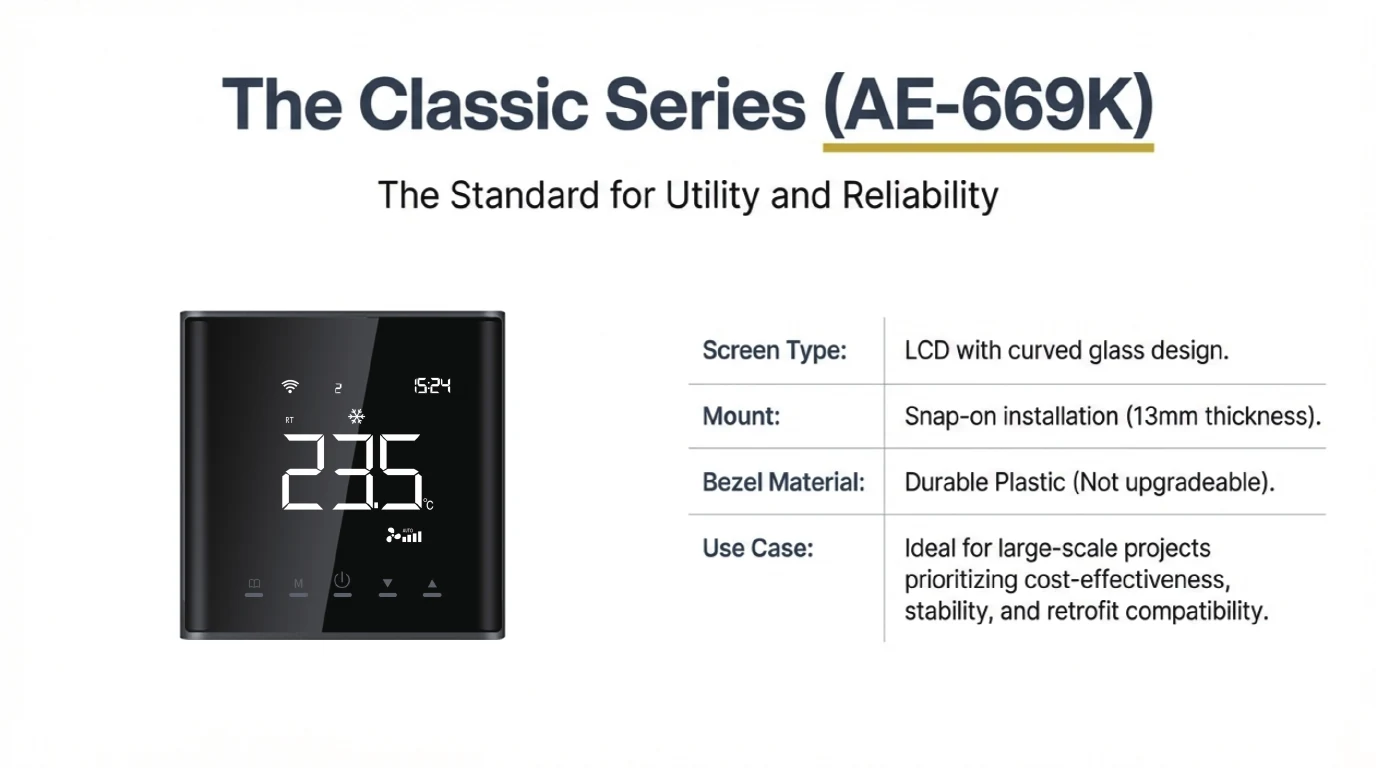

S20 classic AE-669K LCD thermostat series

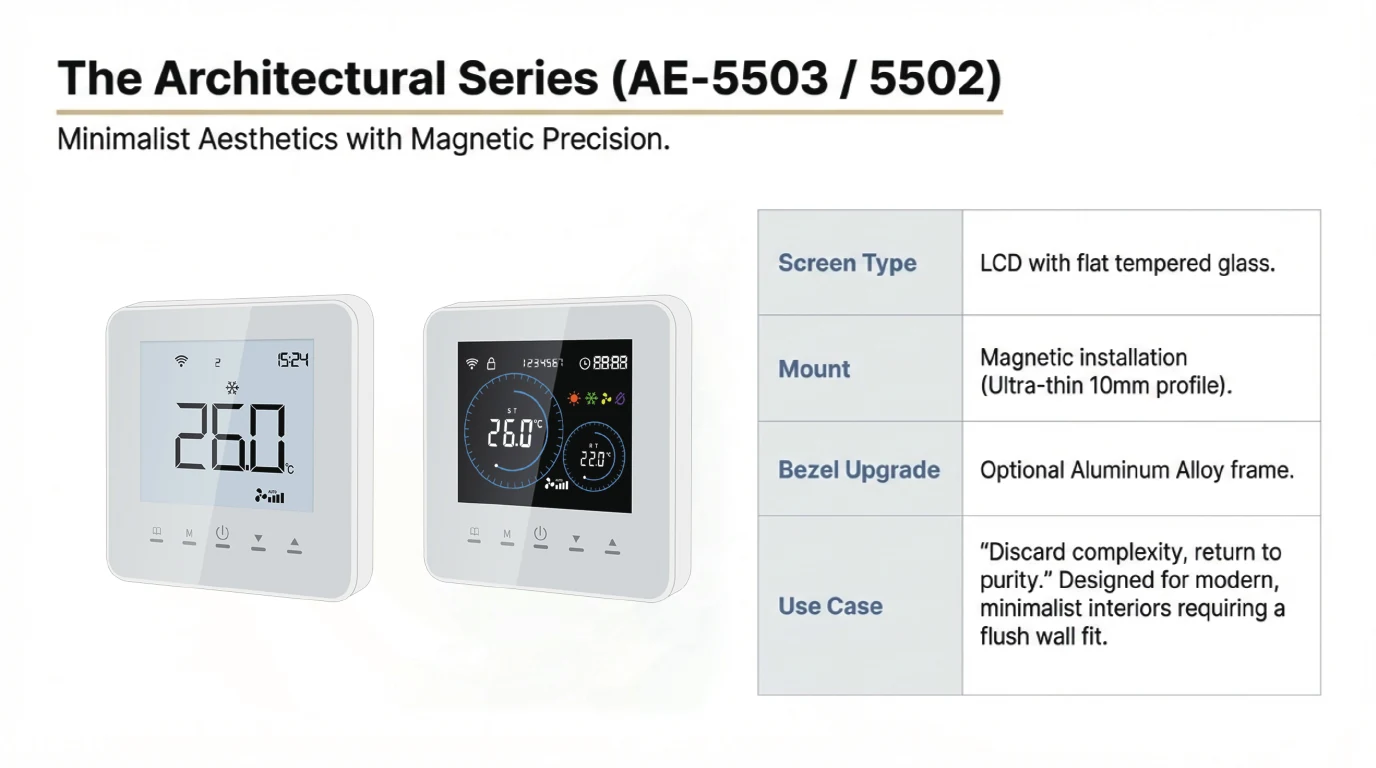

S20 architectural AE-5503 and AE-5502 thermostat series

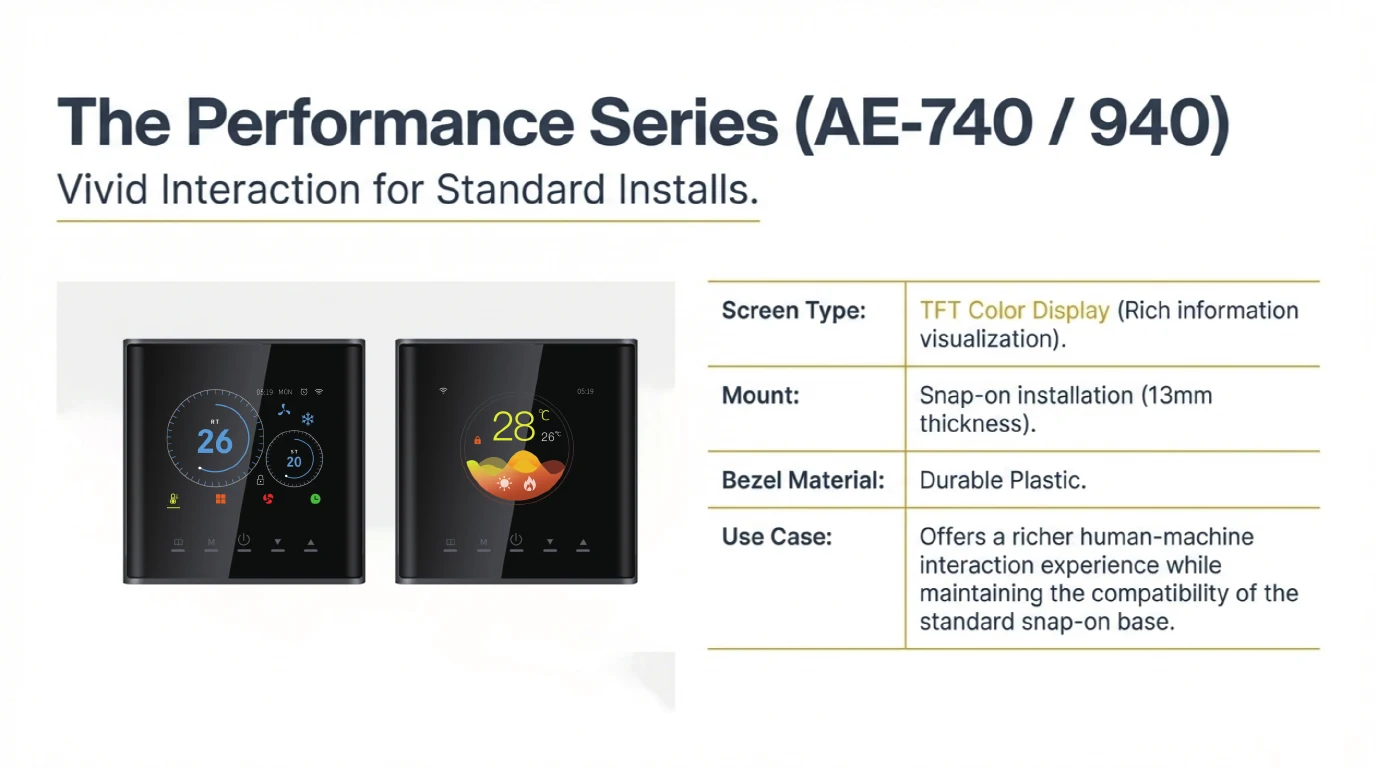

S20 performance AE-740 and AE-940 thermostat series

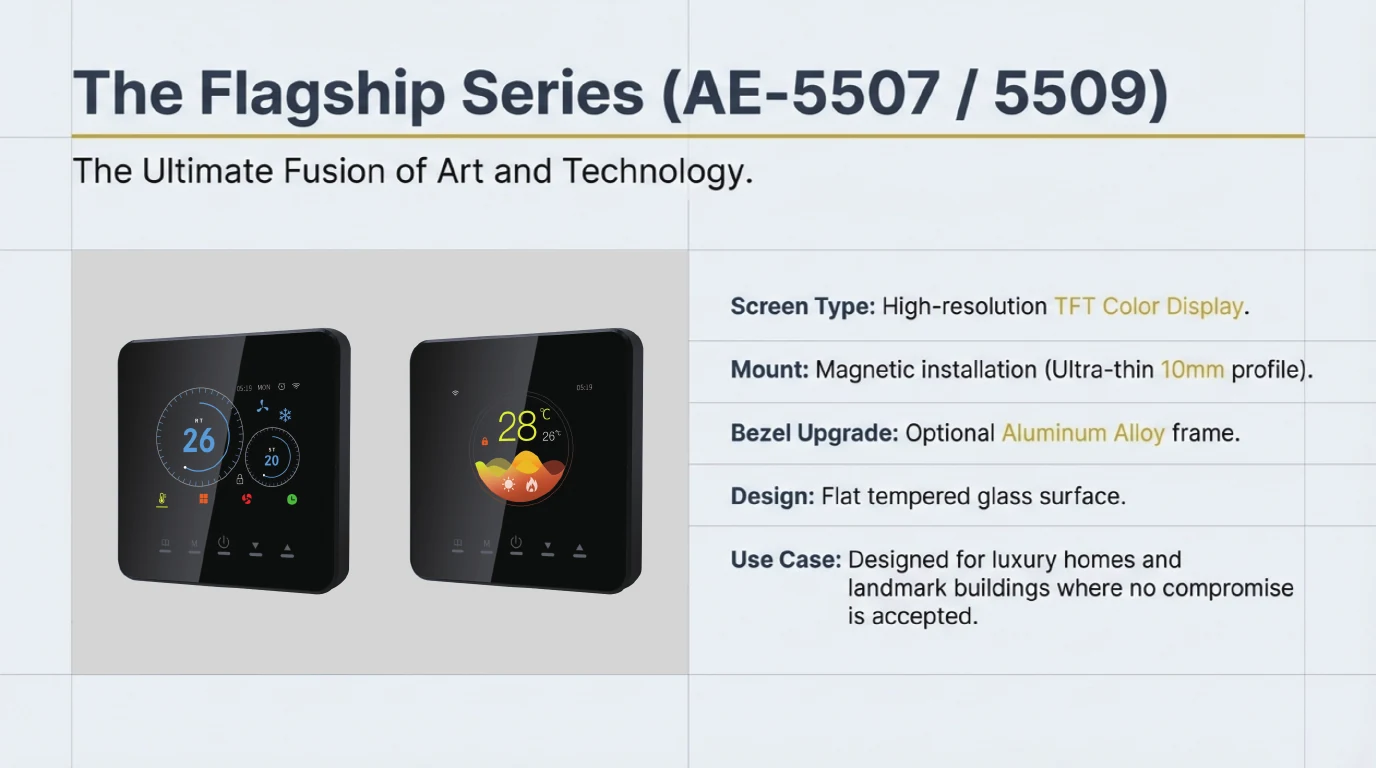

S20 flagship AE-5507 and AE-5509 thermostat series

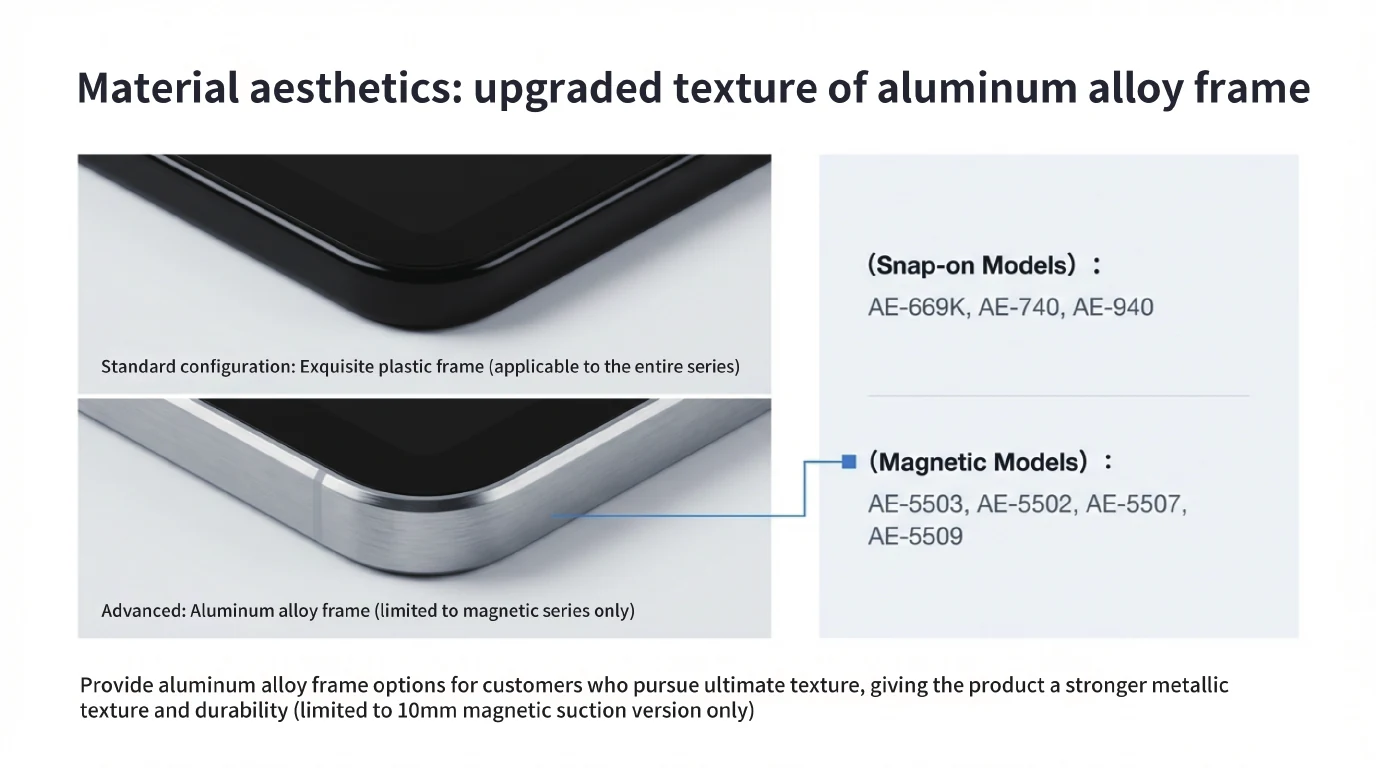

S20 aluminum alloy frame material and finish options

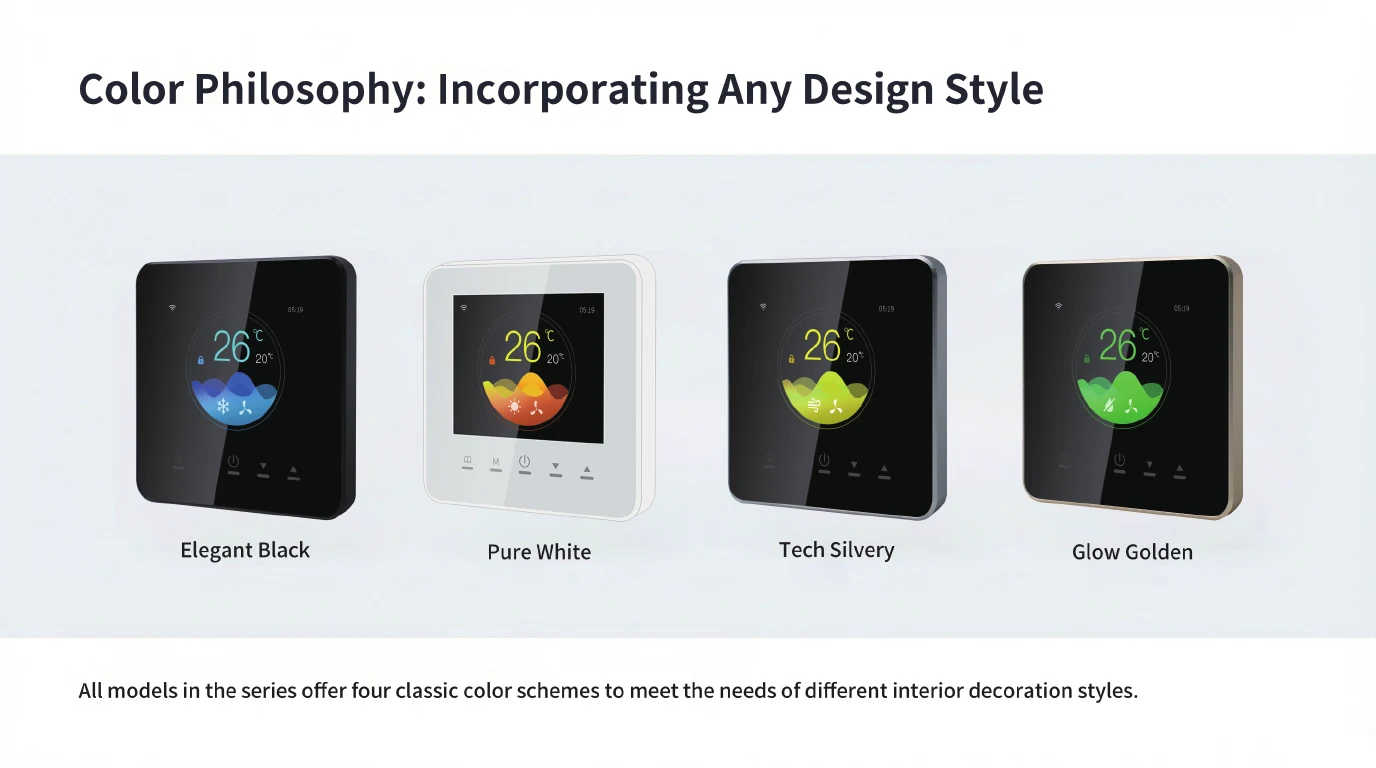

S20 product color philosophy and four design finishes

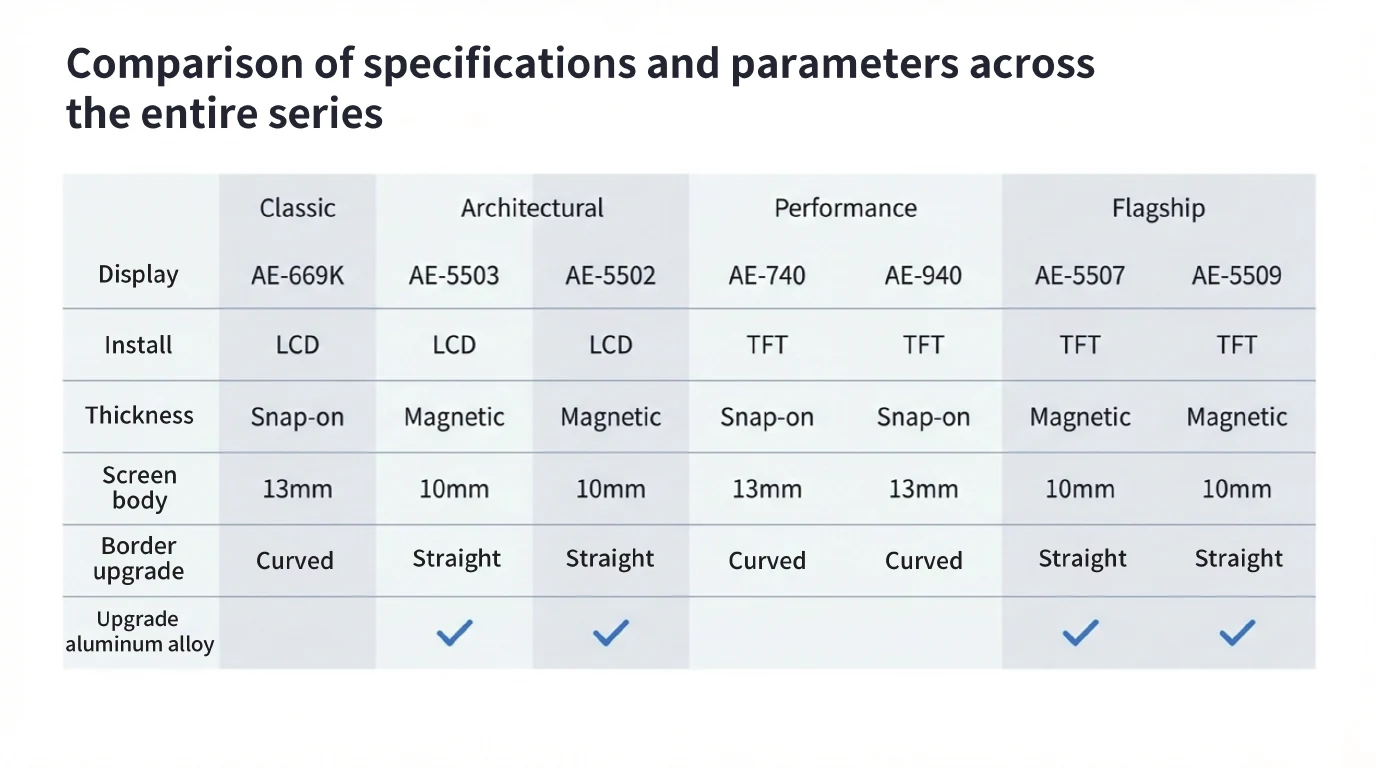

S20 thermostat series specification comparison

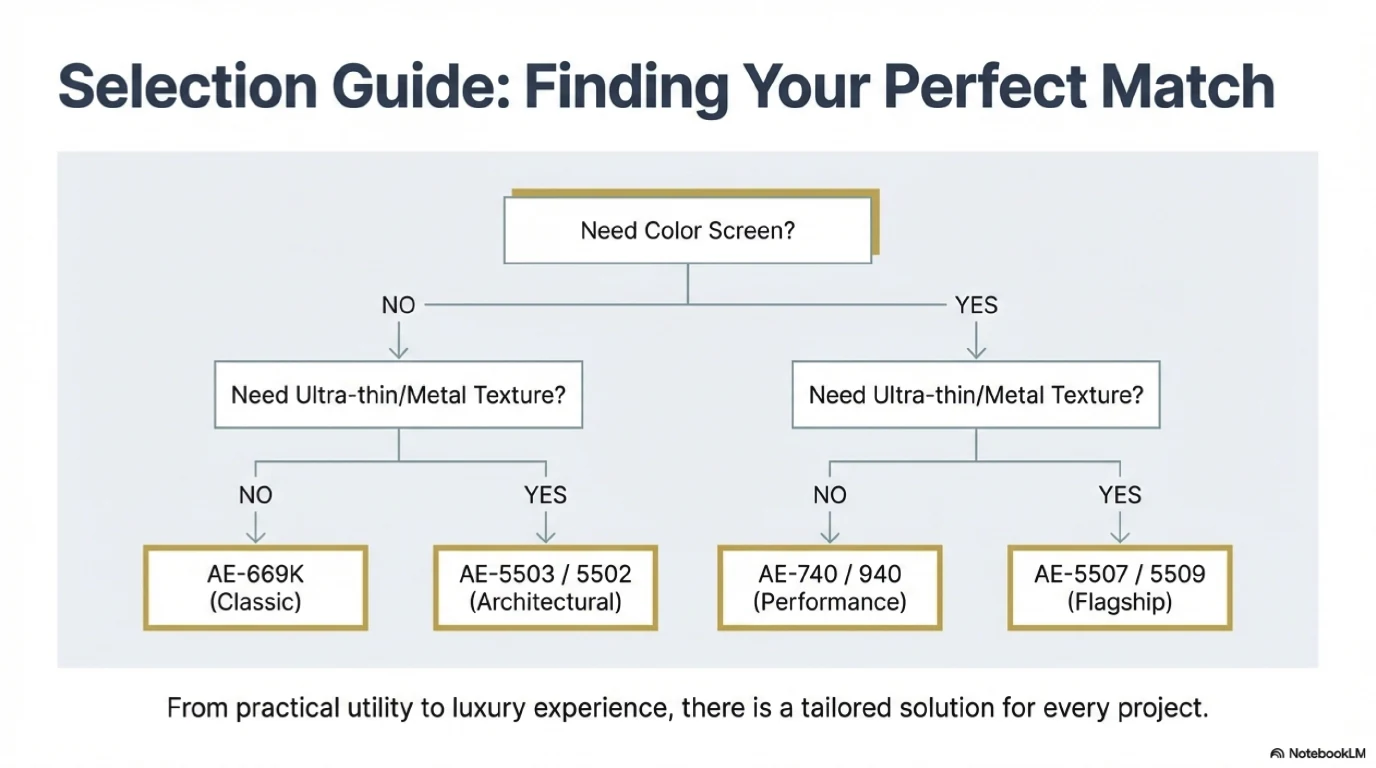

S20 thermostat model selection guide

One platform, project-specific setup

Reduce SKU complexity without guessing compatibility

The same controller platform can be configured for different supported HVAC protocols. Each order is still matched to the complete indoor-unit model and terminals.

2-wire routes

Supports applicable P1/P2 or X/Y communication used by selected Daikin, Hitachi, Toshiba, Panasonic, Mitsubishi Heavy Industries, Hisense, Gree and York systems.

3-wire routes

Supports selected proprietary combinations used by applicable Mitsubishi Heavy Industries, Midea and Haier models.

4-wire routes

Supports selected A1/B1/D-/D+ or related arrangements. Exact model verification is mandatory.

Tuya ecosystem

Optional WiFi supports Tuya Smart / Smart Life, scheduling, remote control and supported voice integrations.

Compatibility scope

Brands represented in the supplied matrix

  • Daikin, Daikin MX, Mitsubishi Electric and Mitsubishi Heavy Industries
  • Hitachi, Toshiba, Panasonic, Hisense and York
  • Midea, Gree and Haier

Some rows are marked “check specific model.” Brand presence in the matrix does not mean every series or indoor unit is supported. LG has no interface entry in the two supplied reference panels; its support is not established by this matrix. Any broader brand overview in the illustrations or brochure requires separate model-specific confirmation.

Required confirmation

  • Complete indoor-unit model and suffix
  • Clear control-board or terminal photo
  • Current wired controller model, if installed
  • Target screen style, color and WiFi requirement

Available design series

Wall-panel choices

Classic LCDAE-669K, snap-on, 13 mm
Architectural LCD/TFTAE-5503 / AE-5502, magnetic, 10 mm
Performance TFTAE-740 / AE-940, snap-on, 13 mm
Flagship TFTAE-5507 / AE-5509, magnetic, 10 mm
OEM optionsLogo, color direction, aluminum-alloy frame, packaging and manual by project

Inquiry shortcut

Send the indoor-unit label and terminal photo. ACMELEC will confirm the firmware profile, wiring route and suitable wall-panel option before the sample is prepared.

Start compatibility check

Verified product answers

S20 configuration questions

Can the installer select a brand protocol on site?

Yes. S20 uses Bluetooth setup to load one selected supported brand profile. The correct profile and wiring must be confirmed before commissioning.

Does S20 support every model from the listed brands?

No. Compatibility is specific to the indoor-unit model and interface. ACMELEC must confirm the exact model and terminal route before ordering.

Is WiFi mandatory on S20?

No. WiFi is optional. The thermostat can be supplied for local control or with the selected smart-control configuration.

Samples, MOQ and lead time

Purchasing information

  • Pricing is quoted according to model, configuration and order quantity.
  • Standard MOQ: 60 units/sets.
  • Standard stock samples: approximately 3 working days.
  • Functional or protocol-configured samples: approximately 15–20 working days.
  • Logo, manual or packaging-adjusted samples: approximately 10 working days.
  • Mass-production lead time is confirmed according to quantity and production schedule.

Logo, packaging and certification

  • Free laser-engraved product logo when the standard MOQ is met.
  • Orders below 500 units/sets use standard white corrugated packaging.
  • Full-color logo packaging is available from 500 units/sets.
  • CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
